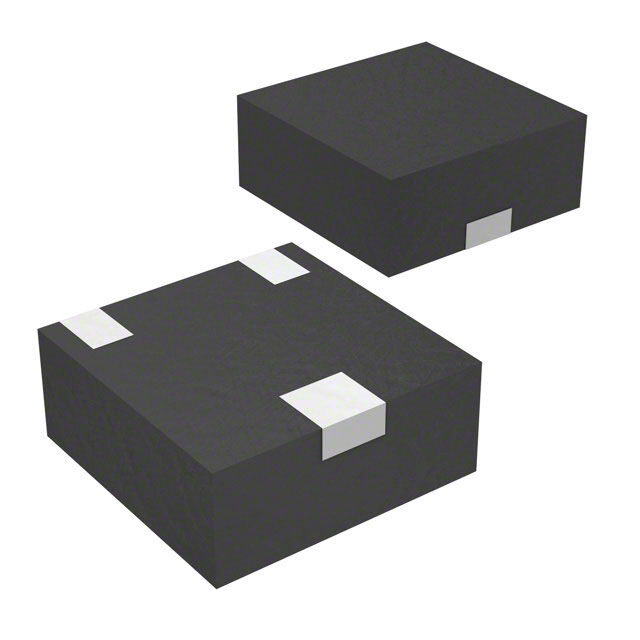

DMN62D0SFD-7

Active

Diodes Inc

POWER MOSFET, N CHANNEL, 60 V, 540 MA, 2 OHM, X1-DFN1212, SURFACE MOUNT

Deep-Dive with AI

DocumentsDatasheet Package PDF +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DMN62D0SFD-7

Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On, Min Rds On) [Max]	10 V
Drive Voltage (Max Rds On, Min Rds On) [Min]	5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	0.87 nC
Input Capacitance (Ciss) (Max) @ Vds	30.2 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	3-UDFN
Power Dissipation (Max)	430 mW
Rds On (Max) @ Id, Vgs	2 Ohm
Supplier Device Package	X1-DFN1212-3
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id [Max]	2.5 V

DMN62D1LFDQ Series

60V Dual N-Channel Enhancement Mode MOSFET

Part	Vgs (Max)	Package / Case	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs	Technology	Power Dissipation (Max)	FET Type	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id [Max]	Supplier Device Package	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Drive Voltage (Max Rds On, Min Rds On)	Qualification	Vgs(th) (Max) @ Id	Grade	Power Dissipation (Max) [Max]	Power - Max [Max]	Configuration	Rds On (Max) @ Id, Vgs [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]
Diodes Inc DMN62D0SFD-7	20 V	3-UDFN	60 V	30.2 pF	0.87 nC	MOSFET (Metal Oxide)	430 mW	N-Channel	10 V	5 V	-55 °C	150 °C	2 Ohm	2.5 V	X1-DFN1212-3	Surface Mount
Diodes Inc DMN62D2UQ-13	20 V	SC-59 SOT-23-3 TO-236-3	60 V	41 pF	0.8 nC	MOSFET (Metal Oxide)		N-Channel			-55 °C	150 °C	2 Ohm		SOT-23-3	Surface Mount	390 mA	1.8 V 5 V	AEC-Q101	1 V	Automotive	500 mW
Diodes Inc DMN62D2UDW-7		6-TSSOP SC-88 SOT-363	60 V	41 pF	0.8 nC	MOSFET (Metal Oxide)					-55 °C	150 °C	2 Ohm		SOT-363	Surface Mount	340 mA			1 V			300 mW	2 N-Channel
Diodes Inc DMN62D1LFD-7	20 V	3-UDFN	60 V	36 pF	0.55 nC	MOSFET (Metal Oxide)		N-Channel			-55 °C	150 °C			X1-DFN1212-3	Surface Mount	400 mA	1.8 V 4 V		1 V		500 mW			2 Ohm
Diodes Inc DMN62D0U-7	20 V	SC-59 SOT-23-3 TO-236-3	60 V	32 pF		MOSFET (Metal Oxide)	380 mW	N-Channel			-55 °C	150 °C	2 Ohm		SOT-23-3	Surface Mount	380 mA	1.8 V 4.5 V		1 V						0.5 nC
Diodes Inc DMN62D1LFDQ-7	20 V	3-PowerUDFN	60 V	36 pF	0.55 nC	MOSFET (Metal Oxide)		N-Channel	1.5 V	4 V	-55 °C	150 °C			U-DFN1212-3 (Type C)	Surface Mount	400 mA		AEC-Q101	1 V	Automotive	500 mW			2 Ohm
Diodes Inc DMN62D2UDW-13		6-TSSOP SC-88 SOT-363	60 V	41 pF	0.8 nC	MOSFET (Metal Oxide)					-55 °C	150 °C	2 Ohm		SOT-363	Surface Mount	340 mA			1 V			300 mW	2 N-Channel
Diodes Inc DMN62D0UT-13	20 V	SOT-523	60 V	32 pF		MOSFET (Metal Oxide)	230 mW	N-Channel			-55 °C	150 °C	2 Ohm		SOT-523	Surface Mount	320 mA	1.8 V 2.5 V 4.5 V		1 V						0.5 nC
Diodes Inc DMN62D1LFB-7B	20 V	3-UFDFN	60 V	64 pF		MOSFET (Metal Oxide)		N-Channel	1.5 V	4 V	-55 °C	150 °C			X1-DFN1006-3	Surface Mount	320 mA			1 V		500 mW			2 Ohm	0.9 nC
Diodes Inc DMN62D0U-13	20 V	SC-59 SOT-23-3 TO-236-3	60 V	32 pF		MOSFET (Metal Oxide)	380 mW	N-Channel			-55 °C	150 °C	2 Ohm		SOT-23-3	Surface Mount	380 mA	1.8 V 4.5 V		1 V						0.5 nC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.46
		10	$ 0.33
		100	$ 0.16
		500	$ 0.13
		1000	$ 0.10
	Digi-Reel®	1	$ 0.46
		10	$ 0.33
		100	$ 0.16
		500	$ 0.13
		1000	$ 0.10
	Tape & Reel (TR)	3000	$ 0.08
		6000	$ 0.08
		9000	$ 0.07
		30000	$ 0.07
		75000	$ 0.06
		150000	$ 0.06
Newark	Each (Supplied on Cut Tape)	1	$ 0.38
		10	$ 0.25
		25	$ 0.21
		50	$ 0.17
		100	$ 0.14
		250	$ 0.13
		500	$ 0.13
		1000	$ 0.13

Description

General part information

DMN62D1LFDQ Series

This new generation 60V N channel enhancement mode MOSFET has been designed to minimise RDS(ON)and yet maintain superior switching performance. This device is ideally suited to portable , Battery packing and other power management functions.

Documents

Technical documentation and resources

Datasheet

Package PDF

Package File

Recommended Soldering Techniques

Technical Document
