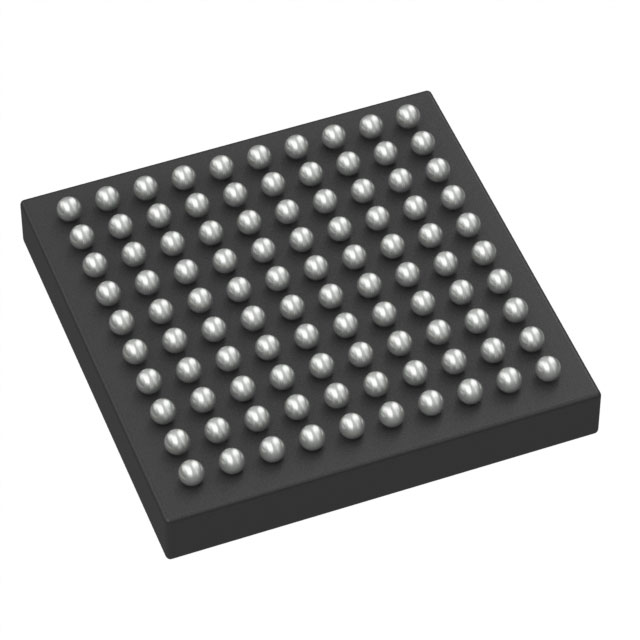

STM32WB55VYY6TR

Active

STMicroelectronics

ULTRA-LOW-POWER DUAL CORE ARM CORTEX-M4 MCU 64 MHZ, CORTEX-M0+ 32 MHZ WITH 640 KBYTES OF FLASH MEMORY, BLUETOOTH LE 5.3, 802.15.4, ZIGBEE, THREAD, MATTER, USB, LCD, AES-256

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AN5155 +122

STM32WB55VYY6TR

Active

STMicroelectronics

ULTRA-LOW-POWER DUAL CORE ARM CORTEX-M4 MCU 64 MHZ, CORTEX-M0+ 32 MHZ WITH 640 KBYTES OF FLASH MEMORY, BLUETOOTH LE 5.3, 802.15.4, ZIGBEE, THREAD, MATTER, USB, LCD, AES-256

Deep-Dive with AI

DocumentsDatasheet AN5155 +122

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STM32WB55VYY6TR

Current - Receiving [Max]	7.9 mA
Current - Receiving [Min]	4.5 mA
Current - Transmitting [Max]	12.7 mA
Current - Transmitting [Min]	5.2 mA
Data Rate (Max)	2 Mbps
Frequency [Max]	2.48 GHz
Frequency [Min]	2.4 GHz
GPIO	72
Memory Size [custom]	640 kB
Memory Size [custom]	256 kB
Modulation	GFSK
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	100-UFBGA, WLCSP
Power - Output	6 dBm
Protocol	Thread, Zigbee®, Bluetooth v5.3
RF Family/Standard	Bluetooth, 802.15.4
Sensitivity	-100 dBm
Serial Interfaces	USART, ADC, JTAG, I2C, USB, SPI, GPIO, UART, PWM, IrDA, I2S
Supplier Device Package	100-WLCSP (4.4x4.38)
Type	TxRx + MCU
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.71 V

STM32F0DISCOVERY Series

Sub-GHz Wireless Microcontrollers. Dual-core Arm Cortex-M4/M0+ @48 MHz with 256 Kbytes of Flash memory, 64 Kbytes of SRAM. LoRa, (G)FSK, (G)MSK, BPSK modulations. AES 256-bit. Multiprotocol System-on-Chip.

...

Part	Type	Suggested Programming Environment	Core Processor	Contents	Board Type	Utilized IC / Part	Mounting Type	Modulation	GPIO	Current - Transmitting [Min]	Current - Transmitting [Max]	Current - Receiving [Min]	Current - Receiving [Max]	Serial Interfaces	Frequency [Min]	Frequency [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	RF Family/Standard	Power - Output	Data Rate (Max)	Supplier Device Package	Sensitivity	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Size	Protocol	Memory Size [custom]	Memory Size [custom]	Security Features	Co-Processors/DSP	RAM Controllers	Speed	Speed	Additional Interfaces	Ethernet	Ethernet [Max]	Ethernet [Min]	Display & Interface Controllers	USB	Number of Cores/Bus Width	Voltage - I/O	Interconnect System	Platform	Operating System	Current - Receiving
STMicroelectronics STM32G484E-EVAL	MCU 32-Bit	IAR EW Keil MDK STM32Cube	ARM® Cortex®-M4	Board(s) LCD	Evaluation Platform	STM32G484	Fixed
STMicroelectronics STM32WB55VGQ7	TxRx + MCU						Surface Mount	GFSK	72	4.5 mA	12.7 mA	4.5 mA	9.2 mA	ADC GPIO I2C I2S IrDA JTAG PWM SPI UART USART USB	2.4 GHz	2.48 GHz	105 °C	-40 °C	129-UFBGA	802.15.4 Bluetooth	6 dBm	2 Mbps	129-UFBGA (7x7)	-100 dBm	3.6 V	1.62 V	1 MB 256 kB	Bluetooth v5.3 Thread Zigbee®
STMicroelectronics STM32WB55CCU6TR	TxRx + MCU						Surface Mount	GFSK	30	5.2 mA	12.7 mA	4.5 mA	7.9 mA	ADC I2C SPI UART USART USB	2.405 GHz	2.48 GHz	85 °C	-40 °C	48-UFQFN Exposed Pad	802.15.4 Bluetooth	6 dBm	2 Mbps	48-UFQFPN (7x7)	-100 dBm	3.6 V	1.71 V		Bluetooth v5.3 Thread Zigbee®	128 kB	256 kB
STMicroelectronics STM32MP151AAD3T			ARM® Cortex®-A7				Surface Mount										125 °C	-40 °C					257-TFBGA (10x10)								ARM TZ	ARM® Cortex®-M4	DDR3 DDR3L LPDDR2 LPDDR3	209 MHz	650 MHz	CAN Ethernet I2C MMC/SD/SDIO SPDIF SPI UART USB	1	100 Mbps	10 Mbps	HDMI-CEC LCD	USB 2.0 (2) USB 2.0 OTG+ PHY (3)	1 Core 32 Bit	2.5 V 3.3 V
STMicroelectronics STM32WBA54KGU6
STMicroelectronics STM32MP157A-DK1	MPU	GNU GCC IAR EW Keil MDK	ARM® Cortex®-A7 Cortex®-M4	Board(s)	Evaluation Platform	STM32MP157A	Fixed																																					Arduino R3 Shield Raspberry Pi HAT (40 pin)	Discovery	Linux
STMicroelectronics STM32WLE5C8U6	TxRx + MCU						Surface Mount	BPSK FSK GFSK GMSK MSK	29	21 mA	120 mA			ADC GPIO I2C IrDA SPI UART USART	150 MHz	960 MHz	85 °C	-40 °C	48-UFQFN Exposed Pad	802.15.4	22 dBm	300 kbps	48-UFQFPN (7x7)	-148 dBm	3.6 V	1.8 V	64 kB	LoRaWAN 1.0 Sigfox																			4.82 mA
STMicroelectronics STM32F0DISCOVERY	MCU 32-Bit	GNU GCC IAR EW Keil MDK STM32Cube	ARM® Cortex®-M0	Board(s)	Evaluation Platform	STM32F051R8T6	Fixed																																						Discovery
STMicroelectronics STM32H743I-EVAL2	MCU 32-Bit	GNU GCC IAR EW Keil MDK STM32Cube	ARM® Cortex®-M7	Board(s) LCD	Evaluation Platform	STM32H743XIH6	Fixed
STMicroelectronics STM32WB55VYY6TR	TxRx + MCU						Surface Mount	GFSK	72	5.2 mA	12.7 mA	4.5 mA	7.9 mA	ADC GPIO I2C I2S IrDA JTAG PWM SPI UART USART USB	2.4 GHz	2.48 GHz	85 °C	-40 °C	100-UFBGA WLCSP	802.15.4 Bluetooth	6 dBm	2 Mbps	100-WLCSP (4.4x4.38)	-100 dBm	3.6 V	1.71 V		Bluetooth v5.3 Thread Zigbee®	256 kB	640 kB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 4.87

Description

General part information

STM32F0DISCOVERY Series

The STM32WB55xx and STM32WB35xx multiprotocol wireless and ultra-low-power devices embed a powerful and ultra-low-power radio compliant with the Bluetooth®Low Energy SIG specification 5.4 and with IEEE 802.15.4-2011. They contain a dedicated Arm®Cortex®-M0+ for performing all the real-time low layer operation.

The devices are designed to be extremely low-power and are based on the high-performance Arm®Cortex®-M4 32-bit RISC core operating at a frequency of up to 64 MHz. This core features a Floating point unit (FPU) single precision that supports all Arm®single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) that enhances application security.

Enhanced inter-processor communication is provided by the IPCC with six bidirectional channels. The HSEM provides hardware semaphores used to share common resources between the two processors.
