STM32G484E-EVAL
ObsoleteEVALUATION BOARD WITH STM32G484Q
Deep-Dive with AI
Search across all available documentation for this part.

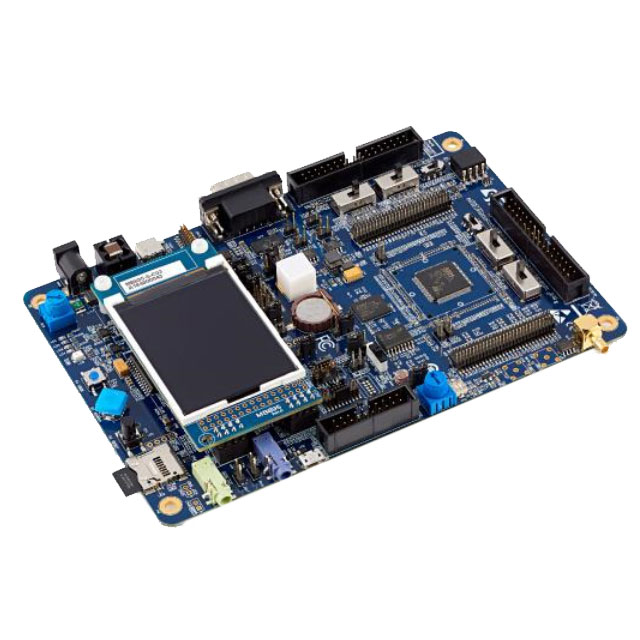

STM32G484E-EVAL
ObsoleteEVALUATION BOARD WITH STM32G484Q
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | STM32G484E-EVAL |
|---|---|
| Board Type | Evaluation Platform |
| Contents | Board(s), LCD |
| Core Processor | ARM® Cortex®-M4 |
| Mounting Type | Fixed |
| Suggested Programming Environment | STM32Cube, Keil MDK, IAR EW |
| Type | MCU 32-Bit |
| Utilized IC / Part | STM32G484 |
