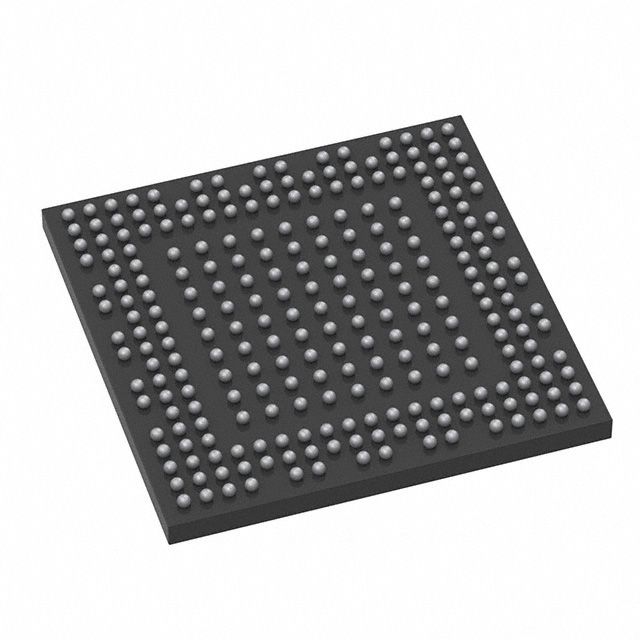

STM32MP151AAD3T

Active

STMicroelectronics

MPU WITH ARM CORTEX-A7 650 MHZ, ARM CORTEX-M4 REAL-TIME COPROCESSOR, TFT DISPLAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

STM32MP151AAD3T

Active

STMicroelectronics

MPU WITH ARM CORTEX-A7 650 MHZ, ARM CORTEX-M4 REAL-TIME COPROCESSOR, TFT DISPLAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STM32MP151AAD3T

Additional Interfaces	CAN, Ethernet, I2C, UART, USB, MMC/SD/SDIO, SPI, SPDIF
Co-Processors/DSP	ARM® Cortex®-M4
Core Processor	ARM® Cortex®-A7
Display & Interface Controllers	LCD, HDMI-CEC
Ethernet	1
Ethernet [Max]	100 Mbps
Ethernet [Min]	10 Mbps
Graphics Acceleration	True
Mounting Type	Surface Mount
Number of Cores/Bus Width	32 Bit, 1 Core
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
RAM Controllers	DDR3, LPDDR2, DDR3L, LPDDR3
Security Features	ARM TZ
Speed	209 MHz
Speed	650 MHz
Supplier Device Package	257-TFBGA (10x10)
USB	USB 2.0 (2), USB 2.0 OTG+ PHY (3)
Voltage - I/O	2.5 V, 3.3 V

STM32F0DISCOVERY Series

Sub-GHz Wireless Microcontrollers. Dual-core Arm Cortex-M4/M0+ @48 MHz with 256 Kbytes of Flash memory, 64 Kbytes of SRAM. LoRa, (G)FSK, (G)MSK, BPSK modulations. AES 256-bit. Multiprotocol System-on-Chip.

...

Part	Type	Suggested Programming Environment	Core Processor	Contents	Board Type	Utilized IC / Part	Mounting Type	Modulation	GPIO	Current - Transmitting [Min]	Current - Transmitting [Max]	Current - Receiving [Min]	Current - Receiving [Max]	Serial Interfaces	Frequency [Min]	Frequency [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	RF Family/Standard	Power - Output	Data Rate (Max)	Supplier Device Package	Sensitivity	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Size	Protocol	Memory Size [custom]	Memory Size [custom]	Security Features	Co-Processors/DSP	RAM Controllers	Speed	Speed	Additional Interfaces	Ethernet	Ethernet [Max]	Ethernet [Min]	Display & Interface Controllers	USB	Number of Cores/Bus Width	Voltage - I/O	Interconnect System	Platform	Operating System	Current - Receiving
STMicroelectronics STM32G484E-EVAL	MCU 32-Bit	IAR EW Keil MDK STM32Cube	ARM® Cortex®-M4	Board(s) LCD	Evaluation Platform	STM32G484	Fixed
STMicroelectronics STM32WB55VGQ7	TxRx + MCU						Surface Mount	GFSK	72	4.5 mA	12.7 mA	4.5 mA	9.2 mA	ADC GPIO I2C I2S IrDA JTAG PWM SPI UART USART USB	2.4 GHz	2.48 GHz	105 °C	-40 °C	129-UFBGA	802.15.4 Bluetooth	6 dBm	2 Mbps	129-UFBGA (7x7)	-100 dBm	3.6 V	1.62 V	1 MB 256 kB	Bluetooth v5.3 Thread Zigbee®
STMicroelectronics STM32WB55CCU6TR	TxRx + MCU						Surface Mount	GFSK	30	5.2 mA	12.7 mA	4.5 mA	7.9 mA	ADC I2C SPI UART USART USB	2.405 GHz	2.48 GHz	85 °C	-40 °C	48-UFQFN Exposed Pad	802.15.4 Bluetooth	6 dBm	2 Mbps	48-UFQFPN (7x7)	-100 dBm	3.6 V	1.71 V		Bluetooth v5.3 Thread Zigbee®	128 kB	256 kB
STMicroelectronics STM32MP151AAD3T			ARM® Cortex®-A7				Surface Mount										125 °C	-40 °C					257-TFBGA (10x10)								ARM TZ	ARM® Cortex®-M4	DDR3 DDR3L LPDDR2 LPDDR3	209 MHz	650 MHz	CAN Ethernet I2C MMC/SD/SDIO SPDIF SPI UART USB	1	100 Mbps	10 Mbps	HDMI-CEC LCD	USB 2.0 (2) USB 2.0 OTG+ PHY (3)	1 Core 32 Bit	2.5 V 3.3 V
STMicroelectronics STM32WBA54KGU6
STMicroelectronics STM32MP157A-DK1	MPU	GNU GCC IAR EW Keil MDK	ARM® Cortex®-A7 Cortex®-M4	Board(s)	Evaluation Platform	STM32MP157A	Fixed																																					Arduino R3 Shield Raspberry Pi HAT (40 pin)	Discovery	Linux
STMicroelectronics STM32WLE5C8U6	TxRx + MCU						Surface Mount	BPSK FSK GFSK GMSK MSK	29	21 mA	120 mA			ADC GPIO I2C IrDA SPI UART USART	150 MHz	960 MHz	85 °C	-40 °C	48-UFQFN Exposed Pad	802.15.4	22 dBm	300 kbps	48-UFQFPN (7x7)	-148 dBm	3.6 V	1.8 V	64 kB	LoRaWAN 1.0 Sigfox																			4.82 mA
STMicroelectronics STM32F0DISCOVERY	MCU 32-Bit	GNU GCC IAR EW Keil MDK STM32Cube	ARM® Cortex®-M0	Board(s)	Evaluation Platform	STM32F051R8T6	Fixed																																						Discovery
STMicroelectronics STM32H743I-EVAL2	MCU 32-Bit	GNU GCC IAR EW Keil MDK STM32Cube	ARM® Cortex®-M7	Board(s) LCD	Evaluation Platform	STM32H743XIH6	Fixed
STMicroelectronics STM32WB55VYY6TR	TxRx + MCU						Surface Mount	GFSK	72	5.2 mA	12.7 mA	4.5 mA	7.9 mA	ADC GPIO I2C I2S IrDA JTAG PWM SPI UART USART USB	2.4 GHz	2.48 GHz	85 °C	-40 °C	100-UFBGA WLCSP	802.15.4 Bluetooth	6 dBm	2 Mbps	100-WLCSP (4.4x4.38)	-100 dBm	3.6 V	1.71 V		Bluetooth v5.3 Thread Zigbee®	256 kB	640 kB
