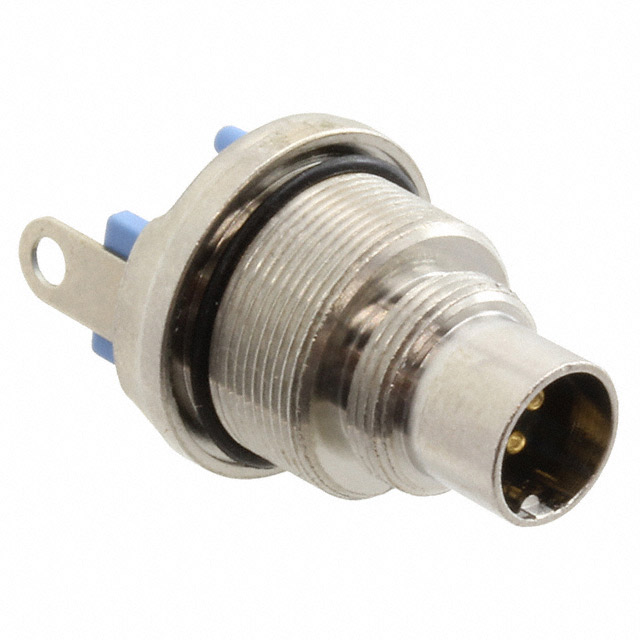

8-1437719-7 - 8-1437719-7

8-1437719-7

Active
TE Connectivity Raychem Cable Protection

CONN CIRCULAR PIN 5 POS SOLDER ST PANEL MOUNT 5 TERMINAL 1 PORT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetProduct Specification M8M12+5
8-1437719-7 - 8-1437719-7

8-1437719-7

Active
TE Connectivity Raychem Cable Protection

CONN CIRCULAR PIN 5 POS SOLDER ST PANEL MOUNT 5 TERMINAL 1 PORT

Deep-Dive with AI

DocumentsDatasheetProduct Specification M8M12+5

Technical Specifications

Parameters and characteristics for this part

Specification8-1437719-7
Connector TypePlug, Male Pins
Current Rating (Amps)3 A
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Insert MaterialPolybutylene Terephthalate (PBT)
Material Flammability RatingUL94 V-2
Mounting FeatureBulkhead - Front Side Nut
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
OrientationKeyed
Primary MaterialMetal
Shell FinishTribor
Shell MaterialBrass
ShieldingShielded
Voltage Rating60 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 7.07
DigikeyBulk 1$ 29.95
10$ 24.82
25$ 23.04
50$ 21.78
100$ 20.59
250$ 19.13
500$ 18.48

Description

General part information

1437719 Series

5 Position Circular Connector, Wire-to-Board, Sealable, Signal, Panel Mount, Reverse Gender, Nickel, CuZn, PBT, Triad 01 Panel/PCB Connector
