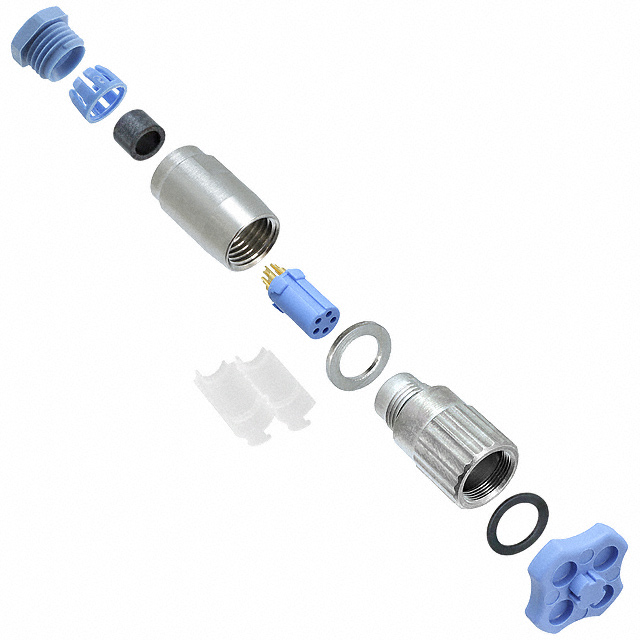

3-1437719-6

Active

TE Connectivity Raychem Cable Protection

T01-0550-S05-FEMALE PLUG CONNECTOR SOLDE

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

T01-0550-S05-FEMALE PLUG CONNECTOR SOLDE

Technical Specifications

Parameters and characteristics for this part

Specification	3-1437719-6

Connector Type	Receptacle, Female Sockets
Current Rating (Amps)	3 A
Features	Strain Relief
Ingress Protection	IP65 - Dust Tight, Water Resistant
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-2
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Tribor
Shell Material	Brass
Shielding	Shielded
Voltage Rating	60 VAC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Connector Type	Insert Material	Shell Material	Features	Ingress Protection	Shielding	Voltage Rating	Mounting Type	Material Flammability Rating	Primary Material	Shell Finish	Orientation
TE Connectivity Raychem Cable Protection 3-1437719-6	85 °C	-40 °C	3 A	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	Brass	Strain Relief	IP65 - Dust Tight Water Resistant	Shielded	60 VAC	Free Hanging (In-Line)	UL94 V-2	Metal	Tribor	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector, Cable-to-Cable, Sealable, Wire & Cable, Signal, Reverse Gender, Nickel, CuZn, PBT, Triad 01 Cable Plug
