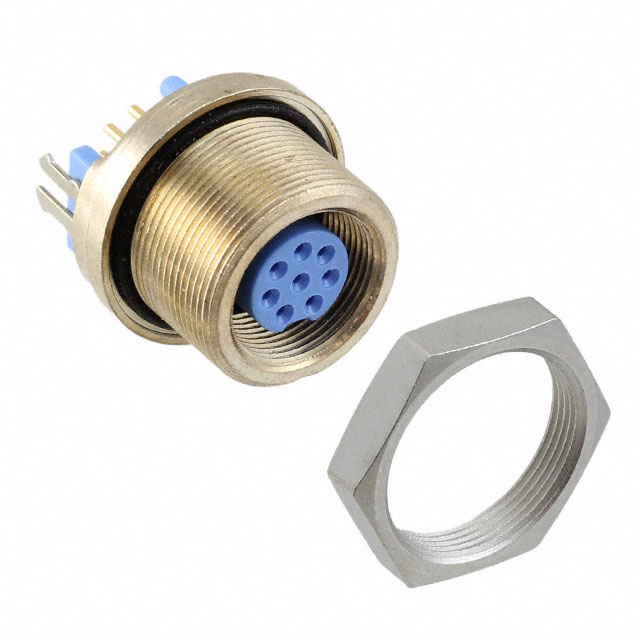

7-1437719-8
ActiveTE Connectivity Raychem Cable Protection
CONN CIRCULAR SKT 8 POS SOLDER ST THRU-HOLE 8 TERMINAL 1 PORT
Deep-Dive with AI
Search across all available documentation for this part.
7-1437719-8
ActiveTE Connectivity Raychem Cable Protection
CONN CIRCULAR SKT 8 POS SOLDER ST THRU-HOLE 8 TERMINAL 1 PORT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7-1437719-8 |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-2 |
| Mounting Feature | Bulkhead |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Tribor |
| Shell Material | Brass |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 60 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1437719 Series
8 Position Circular Connector, Wire-to-Board, Sealable, Signal, Panel Mount, Reverse Gender, Nickel, CuZn, PBT, Triad 01 Panel/PCB Connector
