9-1437719-3
ActiveTE Connectivity Raychem Cable Protection

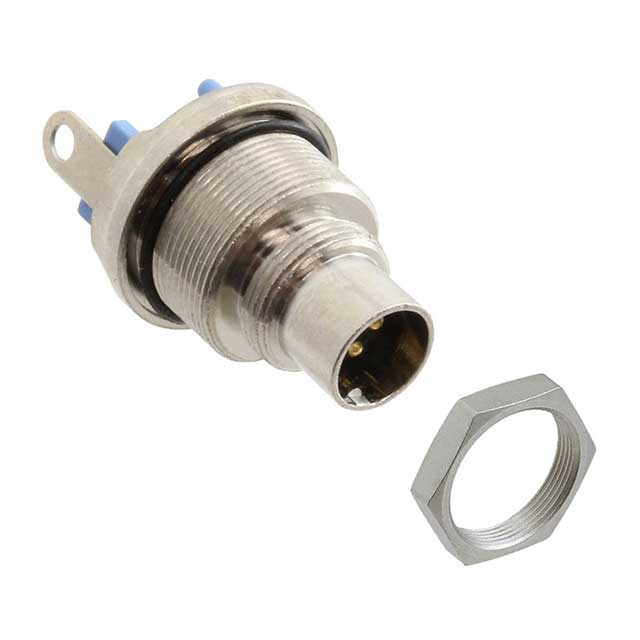

CONN PLUG MALE 8POS SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9-1437719-3
ActiveTE Connectivity Raychem Cable Protection
CONN PLUG MALE 8POS SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9-1437719-3 |
|---|---|
| Connector Type | Plug, Male Pins |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-2 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Tribor |
| Shell Material | Brass |
| Shielding | Shielded |
| Voltage Rating | 60 VAC |
1437719 Series
| Part | Ingress Protection | Current Rating (Amps) | Connector Type | Orientation | Shell Material | Shielding | Mounting Feature | Voltage Rating | Insert Material | Mounting Type | Termination | Shell Finish | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Features | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | IP65 - Dust Tight Water Resistant | 3 A | Male Pins Plug | Keyed | Brass | Shielded | Bulkhead | 60 VAC | Polybutylene Terephthalate (PBT) | Panel Mount Right Angle Through Hole | Solder | Tribor | UL94 V-2 | 85 °C | -40 °C | Metal | ||
TE Connectivity Raychem Cable Protection | IP65 - Dust Tight Water Resistant | 3 A | Receptacle Female Sockets | Keyed | Brass | Shielded | 60 VAC | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | Tribor | UL94 V-2 | 85 °C | -40 °C | Metal | Strain Relief | |||
TE Connectivity Raychem Cable Protection | IP65 - Dust Tight Water Resistant | Male Pins Plug | Keyed | Brass | Shielded | Bulkhead - Front Side Nut | 60 VAC | Polybutylene Terephthalate (PBT) | Tribor | UL94 V-2 | 85 °C | -40 °C | Metal | 8 | ||||
TE Connectivity Raychem Cable Protection | IP65 - Dust Tight Water Resistant | 3 A | Male Pins Plug | Keyed | Brass | Shielded | Bulkhead | 60 VAC | Polybutylene Terephthalate (PBT) | Panel Mount Through Hole | Solder | Tribor | UL94 V-2 | 85 °C | -40 °C | Metal | 4 | |
TE Connectivity Raychem Cable Protection | IP65 - Dust Tight Water Resistant | 3 A | Receptacle Female Sockets | Keyed | Brass | Shielded | Bulkhead | 60 VAC | Polybutylene Terephthalate (PBT) | Panel Mount Through Hole | Solder | Tribor | UL94 V-2 | 85 °C | -40 °C | Metal | ||
TE Connectivity Raychem Cable Protection | IP65 - Dust Tight Water Resistant | 3 A | Receptacle Female Sockets | Keyed | Brass | Shielded | Bulkhead - Front Side Nut | 60 VAC | Polybutylene Terephthalate (PBT) | Tribor | UL94 V-2 | 85 °C | -40 °C | Metal | 4 | |||
TE Connectivity Raychem Cable Protection | IP65 - Dust Tight Water Resistant | 3 A | Male Pins Plug | Keyed | Brass | Shielded | Bulkhead - Front Side Nut | 60 VAC | Polybutylene Terephthalate (PBT) | Tribor | UL94 V-2 | 85 °C | -40 °C | Metal | ||||
TE Connectivity Raychem Cable Protection | IP65 - Dust Tight Water Resistant | 3 A | Male Pins Plug | Keyed | Brass | Shielded | 60 VAC | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | Tribor | UL94 V-2 | 85 °C | -40 °C | Metal | Strain Relief | |||
TE Connectivity Raychem Cable Protection | IP65 - Dust Tight Water Resistant | 3 A | Male Pins Plug | Keyed | Brass | Shielded | Bulkhead | 60 VAC | Polybutylene Terephthalate (PBT) | Panel Mount Through Hole | Solder | Tribor | UL94 V-2 | 85 °C | -40 °C | Metal | ||
TE Connectivity Raychem Cable Protection | IP65 - Dust Tight Water Resistant | Receptacle Female Sockets | Keyed | Brass | Shielded | Bulkhead | 60 VAC | Polybutylene Terephthalate (PBT) | Panel Mount Through Hole | Solder | Tribor | UL94 V-2 | 85 °C | -40 °C | Metal | 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 52.42 | |
| 10 | $ 43.45 | |||
| 25 | $ 40.34 | |||
| 50 | $ 38.14 | |||
| 100 | $ 36.07 | |||
| 250 | $ 34.10 | |||
Description
General part information
1437719 Series
8 Position Circular Connector Plug, Male Pins Solder Cup
