1-1437719-5

Active

TE Connectivity Raychem Cable Protection

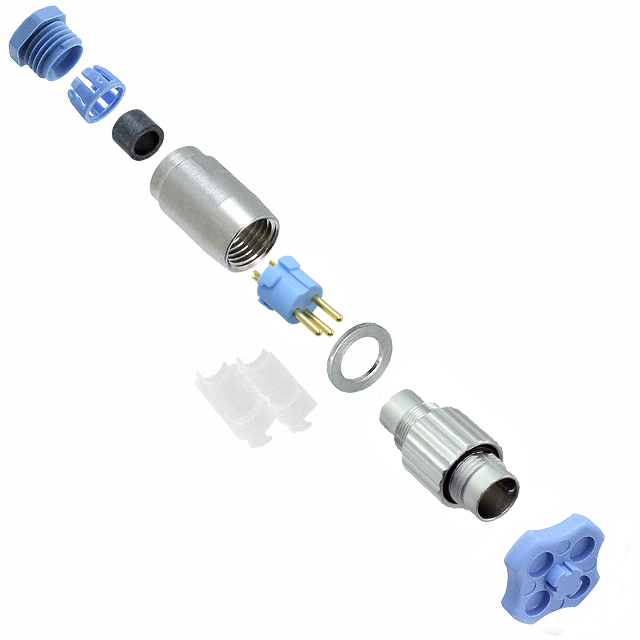

CONN PLUG MALE 3POS SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-1437719-5

Active

TE Connectivity Raychem Cable Protection

CONN PLUG MALE 3POS SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-1437719-5

Connector Type	Plug, Male Pins
Current Rating (Amps)	3 A
Features	Strain Relief
Ingress Protection	IP65 - Dust Tight, Water Resistant
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-2
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Tribor
Shell Material	Brass
Shielding	Shielded
Voltage Rating	60 VAC

1437719 Series

Part	Ingress Protection	Current Rating (Amps)	Connector Type	Orientation	Shell Material	Shielding	Mounting Feature	Voltage Rating	Insert Material	Mounting Type	Termination	Shell Finish	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Features	Number of Positions
TE Connectivity Raychem Cable Protection 5-1437719-1	IP65 - Dust Tight Water Resistant	3 A	Male Pins Plug	Keyed	Brass	Shielded	Bulkhead	60 VAC	Polybutylene Terephthalate (PBT)	Panel Mount Right Angle Through Hole	Solder	Tribor	UL94 V-2	85 °C	-40 °C	Metal
TE Connectivity Raychem Cable Protection 3-1437719-6	IP65 - Dust Tight Water Resistant	3 A	Receptacle Female Sockets	Keyed	Brass	Shielded		60 VAC	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)		Tribor	UL94 V-2	85 °C	-40 °C	Metal	Strain Relief
TE Connectivity Raychem Cable Protection 9-1437719-3	IP65 - Dust Tight Water Resistant		Male Pins Plug	Keyed	Brass	Shielded	Bulkhead - Front Side Nut	60 VAC	Polybutylene Terephthalate (PBT)			Tribor	UL94 V-2	85 °C	-40 °C	Metal		8
TE Connectivity Raychem Cable Protection 6-1437719-4	IP65 - Dust Tight Water Resistant	3 A	Male Pins Plug	Keyed	Brass	Shielded	Bulkhead	60 VAC	Polybutylene Terephthalate (PBT)	Panel Mount Through Hole	Solder	Tribor	UL94 V-2	85 °C	-40 °C	Metal		4
TE Connectivity Raychem Cable Protection 7-1437719-2	IP65 - Dust Tight Water Resistant	3 A	Receptacle Female Sockets	Keyed	Brass	Shielded	Bulkhead	60 VAC	Polybutylene Terephthalate (PBT)	Panel Mount Through Hole	Solder	Tribor	UL94 V-2	85 °C	-40 °C	Metal
TE Connectivity Raychem Cable Protection 9-1437719-9	IP65 - Dust Tight Water Resistant	3 A	Receptacle Female Sockets	Keyed	Brass	Shielded	Bulkhead - Front Side Nut	60 VAC	Polybutylene Terephthalate (PBT)			Tribor	UL94 V-2	85 °C	-40 °C	Metal		4
TE Connectivity Raychem Cable Protection 8-1437719-7	IP65 - Dust Tight Water Resistant	3 A	Male Pins Plug	Keyed	Brass	Shielded	Bulkhead - Front Side Nut	60 VAC	Polybutylene Terephthalate (PBT)			Tribor	UL94 V-2	85 °C	-40 °C	Metal
TE Connectivity Raychem Cable Protection 1-1437719-5	IP65 - Dust Tight Water Resistant	3 A	Male Pins Plug	Keyed	Brass	Shielded		60 VAC	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)		Tribor	UL94 V-2	85 °C	-40 °C	Metal	Strain Relief
TE Connectivity Raychem Cable Protection 6-1437719-3	IP65 - Dust Tight Water Resistant	3 A	Male Pins Plug	Keyed	Brass	Shielded	Bulkhead	60 VAC	Polybutylene Terephthalate (PBT)	Panel Mount Through Hole	Solder	Tribor	UL94 V-2	85 °C	-40 °C	Metal
TE Connectivity Raychem Cable Protection 7-1437719-8	IP65 - Dust Tight Water Resistant		Receptacle Female Sockets	Keyed	Brass	Shielded	Bulkhead	60 VAC	Polybutylene Terephthalate (PBT)	Panel Mount Through Hole	Solder	Tribor	UL94 V-2	85 °C	-40 °C	Metal		8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 38.16
		25	$ 29.28
		100	$ 27.05

Description

General part information

1437719 Series

3 Position Circular Connector Plug, Male Pins Solder Cup
