Technical Specifications
Parameters and characteristics for this part
| Specification | DRC16-40S-P013 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Features | IP68, IP6K9K |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 40 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Row Spacing | 5.49 mm |
| Row Spacing | 0.216 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 37.85 | |
| 10 | $ 33.15 | |||
| 25 | $ 31.71 | |||
| 50 | $ 30.69 | |||
| 100 | $ 29.67 | |||
| 250 | $ 28.03 | |||
Description
General part information
DEUTSCH DRC Series

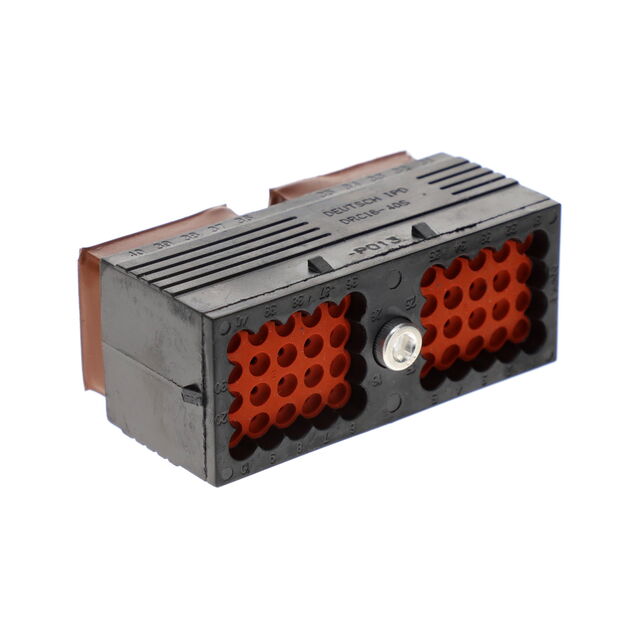

40 Position Housing, Housing for Female Terminals, Wire-to-Wire, 5.49 mm [.216 in] Centerline, Sealable, Black, Wire & Cable, Power, DEUTSCH DRC
