DRC16-24SA-P013
ActiveTE Connectivity Raychem Cable Protection
PLG, 24P, BLK, N, SEAL BOND, A
Deep-Dive with AI
Search across all available documentation for this part.
DRC16-24SA-P013
ActiveTE Connectivity Raychem Cable Protection
PLG, 24P, BLK, N, SEAL BOND, A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DRC16-24SA-P013 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Features | Sealed |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 24 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Row Spacing | 5.49 mm |
| Row Spacing | 0.216 in |
DEUTSCH DRC Series
| Part | Number of Positions | Number of Rows | Row Spacing | Row Spacing | Connector Type | Insulation Material | Color | Mounting Type | Contact Type | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Fastening Type | Features | Number of Positions Loaded | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Color | Contact Finish - Mating | Termination | Contact Finish - Post | Style | Shrouding | Contact Shape | Material Flammability Rating | Voltage Rating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 40 | 7 | 5.4 mm | 0.213 in | Plug | Polyetherimide (PEI) | Black | Free Hanging (In-Line) | Female Socket | 5.5 mm | 0.217 in | -55 °C | 125 °C | Crimp | Push-Pull | ||||||||||||||
TE Connectivity Raychem Cable Protection | 60 | 6 | 4.4 mm | 0.173 in | Receptacle | Glass Filled Nylon Polyamide (PA) | Black | Free Hanging (In-Line) | Female Socket | 4.42 mm | 0.174 in | -55 °C | 125 °C | Crimp | Locking Ramp | IP68 | |||||||||||||
TE Connectivity Raychem Cable Protection | 40 | Receptacle | Glass Filled Nylon Polyamide (PA) | Board Edge Right Angle Through Hole | Male Pin | Board Guide Flange | All | 3.18 mm | 0.125 in | Black | Gold | Solder | Tin | Board to Cable/Wire | Shrouded - 4 Wall | Circular | |||||||||||||
TE Connectivity Raychem Cable Protection | |||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 40 | 7 | 5.4 mm | 0.213 in | Plug | Plastic | Black | Free Hanging (In-Line) | Female Socket | -55 °C | 125 °C | Crimp | |||||||||||||||||
TE Connectivity Raychem Cable Protection | 40 | 5.49 mm | 0.216 in | Plug | Polyphenylene Sulfide (PPS) Glass Filled | Black | Free Hanging (In-Line) | Female Socket | -55 °C | 125 °C | Crimp | IP68 IP6K9K | |||||||||||||||||
TE Connectivity Raychem Cable Protection | 70 | 5 | 5.49 mm | 0.216 in | Receptacle | Polyphenylene Sulfide (PPS) Glass Filled | Black | Male Pin | -55 °C | 125 °C | Crimp | IP68 | |||||||||||||||||
TE Connectivity Raychem Cable Protection | 24 | 5.49 mm | 0.216 in | Plug | Polyphenylene Sulfide (PPS) Glass Filled | Black | Free Hanging (In-Line) | Female Socket | -55 °C | 125 °C | Crimp | Sealed | |||||||||||||||||
TE Connectivity Raychem Cable Protection | 60 | 6 | Header | Through Hole | Male Pin | -55 °C | 125 °C | Push-Pull | Guide Pin | All | Black | Gold | Solder | Tin | Shrouded - 4 Wall | Square | UL94 V-0 | 250 VAC | 7.5 A | ||||||||||
TE Connectivity Raychem Cable Protection | 40 | 5.49 mm | 0.216 in | Plug | Polyphenylene Sulfide (PPS) Glass Filled | Black | Free Hanging (In-Line) | Female Socket | -55 °C | 125 °C | Crimp | Sealed |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 24.55 | |
| 10 | $ 21.50 | |||
| 25 | $ 20.57 | |||
| 50 | $ 19.90 | |||
| 100 | $ 19.24 | |||
| 250 | $ 18.18 | |||
| 500 | $ 17.65 | |||
Description
General part information
DEUTSCH DRC Series

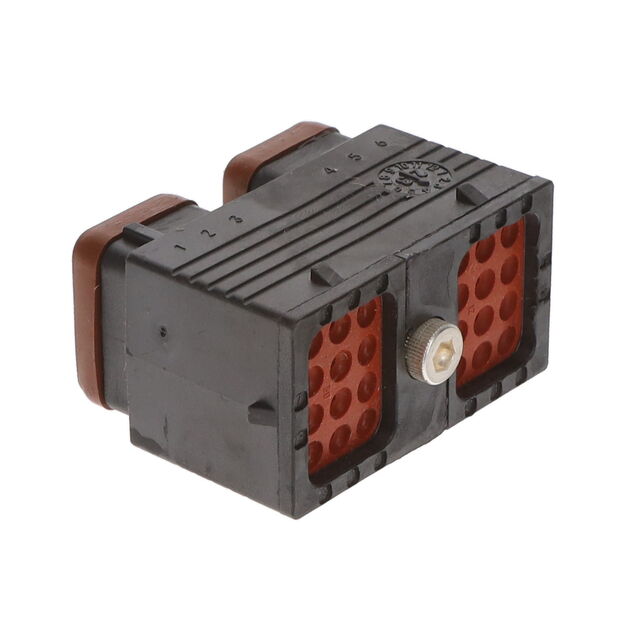

24 Position Housing, Housing for Female Terminals, Wire-to-Wire, 5.49 mm [.216 in] Centerline, Sealable, Black, Wire & Cable, Power, DEUTSCH DRC
