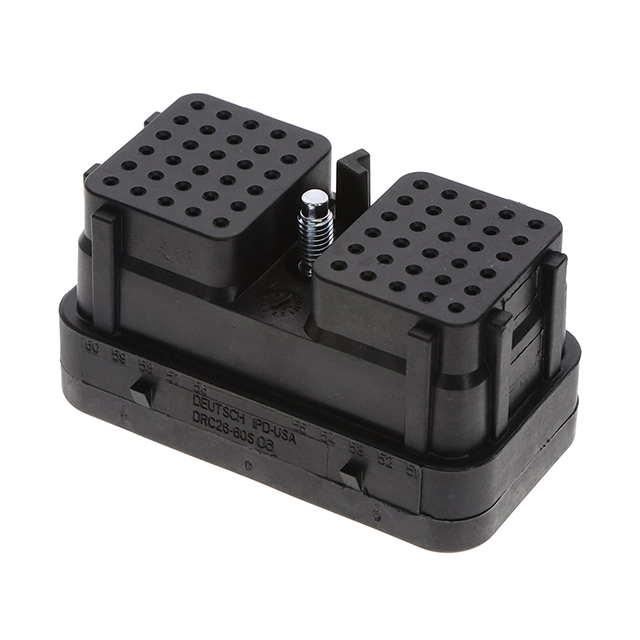

DRC26-60S06
ActiveTE Connectivity Raychem Cable Protection
PLG, 60P, BLK, N, 06
Deep-Dive with AI
Search across all available documentation for this part.
DRC26-60S06
ActiveTE Connectivity Raychem Cable Protection
PLG, 60P, BLK, N, 06
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DRC26-60S06 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Features | IP68 |
| Insulation Material | Nylon, Polyamide (PA), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 60 |
| Number of Rows | 6 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 4.42 mm |
| Pitch [x] | 0.174 in |
| Row Spacing | 0.173 in |
| Row Spacing | 4.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.12 | |
| 10 | $ 31.63 | |||
| 25 | $ 30.27 | |||
| 50 | $ 29.29 | |||
| 100 | $ 28.31 | |||
| 250 | $ 26.75 | |||
Description
General part information
DEUTSCH DRC Series
60 Position Housing, Housing for Female Terminals, Wire-to-Wire, 4.42 mm [.174 in] Centerline, Sealable, Black, Wire & Cable, Power, DEUTSCH DRC
