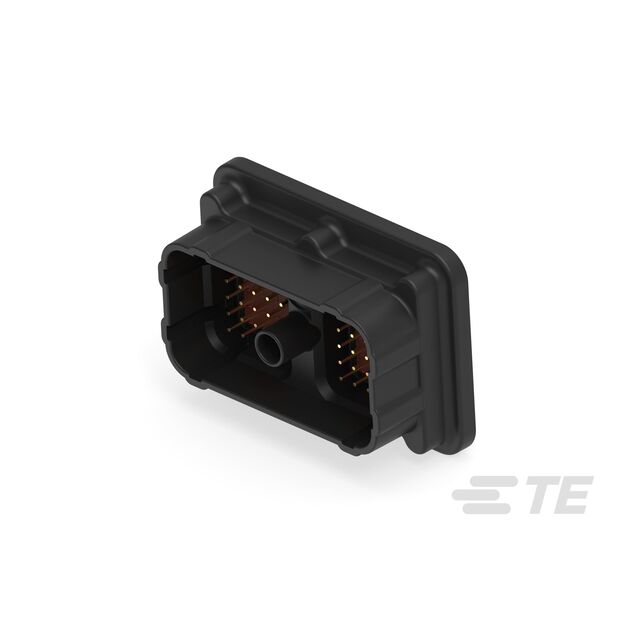

DRC20-60P06
ActiveTE Connectivity Raychem Cable Protection
HDR, 60P, BLK, ST, AU/NI/CU, 06
Deep-Dive with AI
Search across all available documentation for this part.
DRC20-60P06
ActiveTE Connectivity Raychem Cable Protection
HDR, 60P, BLK, ST, AU/NI/CU, 06
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DRC20-60P06 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Push-Pull |
| Features | Guide Pin |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 60 |
| Number of Positions Loaded | All |
| Number of Rows | 6 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 37.78 | |
| 16 | $ 27.80 | |||
| 80 | $ 23.90 | |||
Description
General part information
DEUTSCH DRC Series
Vertical, Wire-to-Board, 60 Position, 6 Rows, 4.42mm [.174in] Centerline, Gold (Au), Sealable, Wire & Cable, 7.5A Contact Current Rating (Max)
