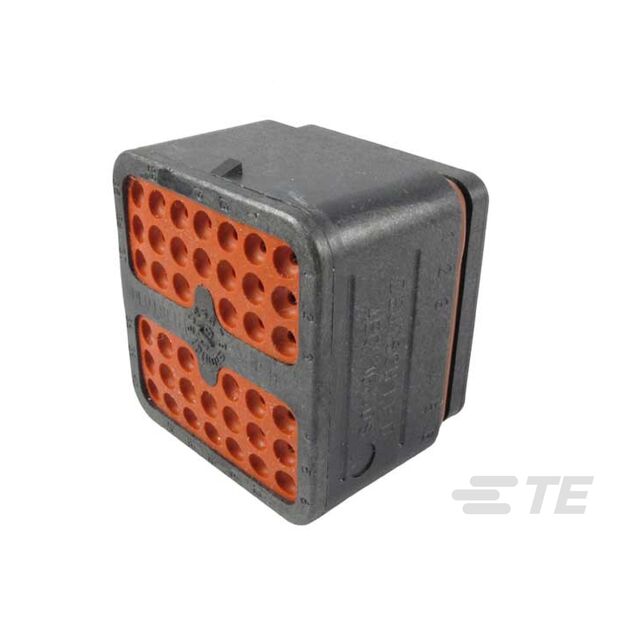

AEC16-40SA

Active

TE Connectivity Raychem Cable Protection

40P PLUG ASM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AEC16-40SA

Active

TE Connectivity Raychem Cable Protection

40P PLUG ASM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AEC16-40SA

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Plastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	40
Number of Rows	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Row Spacing	5.4 mm
Row Spacing	0.213 in

DEUTSCH DRC Series

Part	Number of Positions	Number of Rows	Row Spacing	Row Spacing	Connector Type	Insulation Material	Color	Mounting Type	Contact Type	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Fastening Type	Features	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Contact Finish - Mating	Termination	Contact Finish - Post	Style	Shrouding	Contact Shape	Material Flammability Rating	Voltage Rating	Current Rating (Amps)
TE Connectivity Raychem Cable Protection AEC16-40SAE-E019	40	7	5.4 mm	0.213 in	Plug	Polyetherimide (PEI)	Black	Free Hanging (In-Line)	Female Socket	5.5 mm	0.217 in	-55 °C	125 °C	Crimp	Push-Pull
TE Connectivity Raychem Cable Protection DRC26-60S06	60	6	4.4 mm	0.173 in	Receptacle	Glass Filled Nylon Polyamide (PA)	Black	Free Hanging (In-Line)	Female Socket	4.42 mm	0.174 in	-55 °C	125 °C	Crimp	Locking Ramp	IP68
TE Connectivity Raychem Cable Protection DRC23-40PA-N012	40				Receptacle	Glass Filled Nylon Polyamide (PA)		Board Edge Right Angle Through Hole	Male Pin							Board Guide Flange	All	3.18 mm	0.125 in	Black	Gold	Solder	Tin	Board to Cable/Wire	Shrouded - 4 Wall	Circular
TE Connectivity Raychem Cable Protection DRC26-50S06
TE Connectivity Raychem Cable Protection AEC16-40SA	40	7	5.4 mm	0.213 in	Plug	Plastic	Black	Free Hanging (In-Line)	Female Socket			-55 °C	125 °C	Crimp
TE Connectivity Raychem Cable Protection DRC16-40S-P013	40		5.49 mm	0.216 in	Plug	Polyphenylene Sulfide (PPS) Glass Filled	Black	Free Hanging (In-Line)	Female Socket			-55 °C	125 °C	Crimp		IP68 IP6K9K
TE Connectivity Raychem Cable Protection DRC12-70PBE	70	5	5.49 mm	0.216 in	Receptacle	Polyphenylene Sulfide (PPS) Glass Filled	Black		Male Pin			-55 °C	125 °C	Crimp		IP68
TE Connectivity Raychem Cable Protection DRC16-24SA-P013	24		5.49 mm	0.216 in	Plug	Polyphenylene Sulfide (PPS) Glass Filled	Black	Free Hanging (In-Line)	Female Socket			-55 °C	125 °C	Crimp		Sealed
TE Connectivity Raychem Cable Protection DRC20-60P06	60	6			Header			Through Hole	Male Pin			-55 °C	125 °C		Push-Pull	Guide Pin	All			Black	Gold	Solder	Tin		Shrouded - 4 Wall	Square	UL94 V-0	250 VAC	7.5 A
TE Connectivity Raychem Cable Protection DRC18-40SA-P013	40		5.49 mm	0.216 in	Plug	Polyphenylene Sulfide (PPS) Glass Filled	Black	Free Hanging (In-Line)	Female Socket			-55 °C	125 °C	Crimp		Sealed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.10
		10	$ 17.60
		25	$ 16.84
		50	$ 16.29
		100	$ 15.75
		250	$ 14.88
		500	$ 14.45

Description

General part information

DEUTSCH DRC Series

40 Rectangular Connectors - Housings Plug Black
