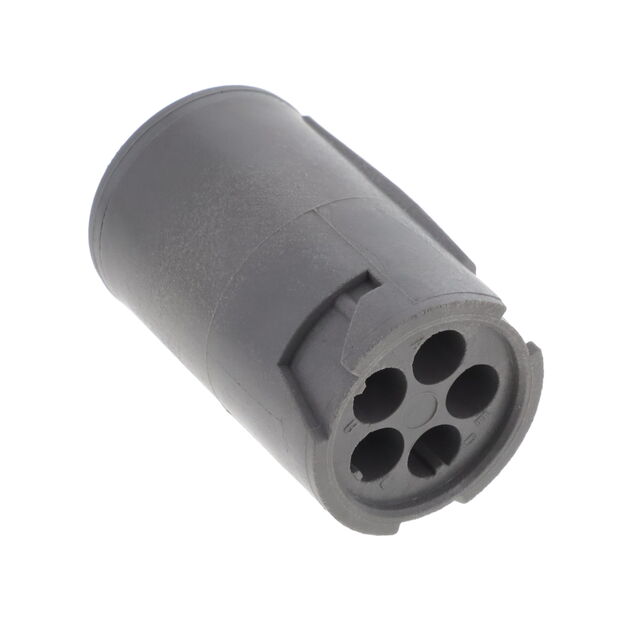

HD14-5-16P
ActiveTE Connectivity Raychem Cable Protection
REC, 5P, GRY, N, 16
Deep-Dive with AI
Search across all available documentation for this part.
HD14-5-16P
ActiveTE Connectivity Raychem Cable Protection
REC, 5P, GRY, N, 16
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HD14-5-16P |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Size | 5 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Gray |
| Ingress Protection | IP6K9K, IP68 |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shell Size - Insert [Max] | 16 |
| Shell Size - Insert [Min] | 5 |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 5.98 | |
| 10 | $ 5.43 | |||
| 25 | $ 5.14 | |||
| 50 | $ 5.02 | |||
| 100 | $ 4.78 | |||
| 250 | $ 4.18 | |||
| 500 | $ 4.06 | |||
| 1000 | $ 3.47 | |||
| 2500 | $ 3.23 | |||
Description
General part information
DEUTSCH HD10 Series
5 Position Housing, Housing for Male Terminals, Wire-to-Wire, Sealable, Gray, Wire & Cable, Power, Cable Mount (Free-Hanging), Hybrid
