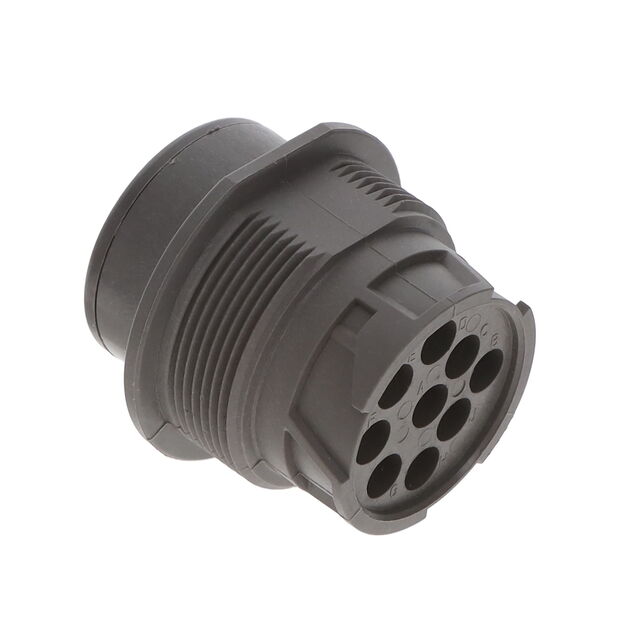

HD10-9-96P-BE09

Active

TE Connectivity Raychem Cable Protection

RECP ASM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HD10-9-96P-BE09

Active

TE Connectivity Raychem Cable Protection

RECP ASM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HD10-9-96P-BE09

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Gray
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-1
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	9
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Plastic
Shell Size - Insert [Max] [custom]	96
Shell Size - Insert [Min] [custom]	9
Shielding	Unshielded
Type	For Male Pins

DEUTSCH HD10 Series

Part	Note	Mounting Type	Material Flammability Rating	Fastening Type	Type	Orientation	Housing Color	Contact Type	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Contact Shape	Primary Material	Shielding	Ingress Protection	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Connector Type	Contact Size	Contact Size	Color	Mounting Feature	Contact Material	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Number of Positions	Termination	Features	Includes	Cable Opening [custom]	Cable Opening [custom]	For Use With/Related Products	Shell Size - Insert	Thread Size	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material	Cable Exit	Accessory Type
TE Connectivity Raychem Cable Protection HD14-5-16P	Contacts Not Included	Free Hanging (In-Line)	UL94 V-0	Bayonet Lock	For Male Pins	Keyed	Gray	Crimp	Polyamide (PA) Nylon Glass Filled	-55 °C	125 °C	Glass Filled Nylon Polyamide (PA)	Circular	Plastic	Unshielded	IP68 IP6K9K	5	16	Receptacle Housing	16	5
TE Connectivity Raychem Cable Protection HD10-9-96P-N005		Panel Mount Through Hole		Bayonet Lock		Keyed			Polyphenylene Sulfide (PPS) Glass Filled			Polyphenylene Sulfide (PPS) Glass Filled		Plastic	Unshielded				Male Pins Receptacle			Black	Flange	Copper Alloy	9	96	9	Solder
TE Connectivity Raychem Cable Protection HD18-006			UL94 V-0		Backshell									Plastic	Unshielded							Gray							Tie Wrap Holder	1 pc - 1 Backshell	38.43 mm	1.513 in	HD10 Rear Threaded Connector	6	1 3/8-18 UNEF	1.563 in	39.7 mm	Plastic	180 °
TE Connectivity Raychem Cable Protection HD14-3-96P	Contacts Not Included	Free Hanging (In-Line)	UL94 V-1	Bayonet Lock	For Male Pins	Keyed	Gray	Crimp	Polyamide (PA) Nylon Glass Filled	-40 °C	125 °C	Glass Filled Nylon Polyamide (PA)	Circular		Unshielded	IP68 - Dust Tight Waterproof	3	96	Receptacle Housing	16
TE Connectivity Raychem Cable Protection HD10-3-96P	Contacts Not Included		UL94 V-1	Bayonet Lock	For Male Pins	Keyed	Gray	Crimp	Polyamide (PA) Nylon Glass Filled	-40 °C	125 °C	Glass Filled Nylon Polyamide (PA)	Circular		Unshielded	IP68 - Dust Tight Waterproof	3	96	Receptacle Housing	16			Flange
TE Connectivity Raychem Cable Protection HD10-6-96P	Contacts Not Included		UL94 V-1	Bayonet Lock	For Male Pins	Keyed	Gray	Crimp	Polyamide (PA) Nylon Glass Filled	-40 °C	125 °C	Glass Filled Nylon Polyamide (PA)	Circular		Unshielded	IP68 - Dust Tight Waterproof	6	96	Receptacle Housing	16			Flange				6
TE Connectivity Raychem Cable Protection HD10-9-1939PE	Contacts Not Included		UL94 V-1	Bayonet Lock	For Male Pins	Keyed	Black	Crimp	Polyamide (PA) Nylon Glass Filled	-40 °C	125 °C	Glass Filled Nylon Polyamide (PA)	Circular		Unshielded	IP68 - Dust Tight Waterproof	9	39	Receptacle Housing	16			Flange				9
TE Connectivity Raychem Cable Protection HDC14-9																						Gray											HD10 Series Plug	9				Glass Filled Nylon Polyamide (PA)		Cap (Cover) Protective
TE Connectivity Raychem Cable Protection HD10-9-1939P-P080	Contacts Not Included		UL94 V-1	Bayonet Lock	For Male Pins	Keyed	Green	Crimp	Plastic	-55 °C	125 °C	Plastic	Circular		Unshielded	IP68 - Dust Tight Waterproof	9	39	Receptacle Housing	16			Flange				9
TE Connectivity Raychem Cable Protection HD10-9-96P-BE09	Contacts Not Included		UL94 V-1	Bayonet Lock	For Male Pins	Keyed	Gray	Crimp	Polyamide (PA) Nylon Glass Filled	-55 °C	125 °C	Plastic	Circular	Plastic	Unshielded				Receptacle Housing	16			Flange		9	96	9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.49
		10	$ 9.45
		100	$ 8.44
		1000	$ 6.25

Description

General part information

DEUTSCH HD10 Series

9 Position Circular Connector Receptacle Housing Panel Mount
