HD10-9-1939P-P080

Active

TE Connectivity Raychem Cable Protection

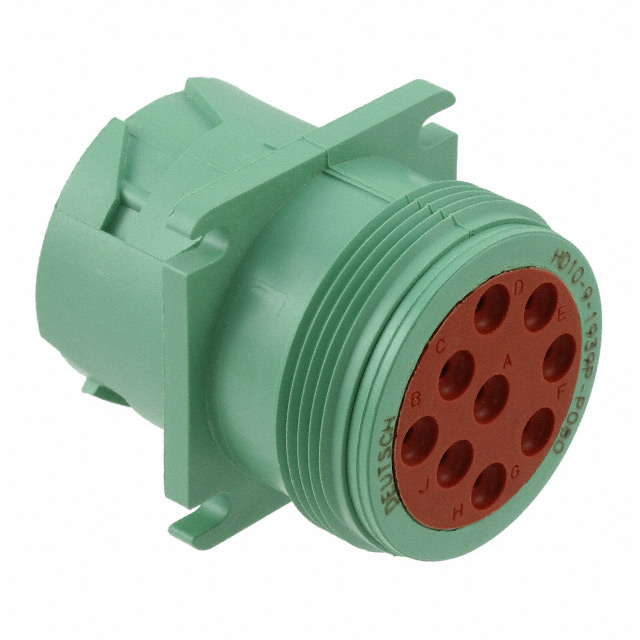

CONN RCPT HSNG MALE 9POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HD10-9-1939P-P080

Active

TE Connectivity Raychem Cable Protection

CONN RCPT HSNG MALE 9POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HD10-9-1939P-P080

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Green
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Plastic
Material Flammability Rating	UL94 V-1
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	9
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Material	Plastic
Shell Size - Insert [Max]	39
Shell Size - Insert [Min]	9
Shielding	Unshielded
Type	For Male Pins

DEUTSCH HD10 Series

Part	Note	Mounting Type	Material Flammability Rating	Fastening Type	Type	Orientation	Housing Color	Contact Type	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Contact Shape	Primary Material	Shielding	Ingress Protection	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Connector Type	Contact Size	Contact Size	Color	Mounting Feature	Contact Material	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Number of Positions	Termination	Features	Includes	Cable Opening [custom]	Cable Opening [custom]	For Use With/Related Products	Shell Size - Insert	Thread Size	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material	Cable Exit	Accessory Type
TE Connectivity Raychem Cable Protection HD14-5-16P	Contacts Not Included	Free Hanging (In-Line)	UL94 V-0	Bayonet Lock	For Male Pins	Keyed	Gray	Crimp	Polyamide (PA) Nylon Glass Filled	-55 °C	125 °C	Glass Filled Nylon Polyamide (PA)	Circular	Plastic	Unshielded	IP68 IP6K9K	5	16	Receptacle Housing	16	5
TE Connectivity Raychem Cable Protection HD10-9-96P-N005		Panel Mount Through Hole		Bayonet Lock		Keyed			Polyphenylene Sulfide (PPS) Glass Filled			Polyphenylene Sulfide (PPS) Glass Filled		Plastic	Unshielded				Male Pins Receptacle			Black	Flange	Copper Alloy	9	96	9	Solder
TE Connectivity Raychem Cable Protection HD18-006			UL94 V-0		Backshell									Plastic	Unshielded							Gray							Tie Wrap Holder	1 pc - 1 Backshell	38.43 mm	1.513 in	HD10 Rear Threaded Connector	6	1 3/8-18 UNEF	1.563 in	39.7 mm	Plastic	180 °
TE Connectivity Raychem Cable Protection HD14-3-96P	Contacts Not Included	Free Hanging (In-Line)	UL94 V-1	Bayonet Lock	For Male Pins	Keyed	Gray	Crimp	Polyamide (PA) Nylon Glass Filled	-40 °C	125 °C	Glass Filled Nylon Polyamide (PA)	Circular		Unshielded	IP68 - Dust Tight Waterproof	3	96	Receptacle Housing	16
TE Connectivity Raychem Cable Protection HD10-3-96P	Contacts Not Included		UL94 V-1	Bayonet Lock	For Male Pins	Keyed	Gray	Crimp	Polyamide (PA) Nylon Glass Filled	-40 °C	125 °C	Glass Filled Nylon Polyamide (PA)	Circular		Unshielded	IP68 - Dust Tight Waterproof	3	96	Receptacle Housing	16			Flange
TE Connectivity Raychem Cable Protection HD10-6-96P	Contacts Not Included		UL94 V-1	Bayonet Lock	For Male Pins	Keyed	Gray	Crimp	Polyamide (PA) Nylon Glass Filled	-40 °C	125 °C	Glass Filled Nylon Polyamide (PA)	Circular		Unshielded	IP68 - Dust Tight Waterproof	6	96	Receptacle Housing	16			Flange				6
TE Connectivity Raychem Cable Protection HD10-9-1939PE	Contacts Not Included		UL94 V-1	Bayonet Lock	For Male Pins	Keyed	Black	Crimp	Polyamide (PA) Nylon Glass Filled	-40 °C	125 °C	Glass Filled Nylon Polyamide (PA)	Circular		Unshielded	IP68 - Dust Tight Waterproof	9	39	Receptacle Housing	16			Flange				9
TE Connectivity Raychem Cable Protection HDC14-9																						Gray											HD10 Series Plug	9				Glass Filled Nylon Polyamide (PA)		Cap (Cover) Protective
TE Connectivity Raychem Cable Protection HD10-9-1939P-P080	Contacts Not Included		UL94 V-1	Bayonet Lock	For Male Pins	Keyed	Green	Crimp	Plastic	-55 °C	125 °C	Plastic	Circular		Unshielded	IP68 - Dust Tight Waterproof	9	39	Receptacle Housing	16			Flange				9
TE Connectivity Raychem Cable Protection HD10-9-96P-BE09	Contacts Not Included		UL94 V-1	Bayonet Lock	For Male Pins	Keyed	Gray	Crimp	Polyamide (PA) Nylon Glass Filled	-55 °C	125 °C	Plastic	Circular	Plastic	Unshielded				Receptacle Housing	16			Flange		9	96	9
