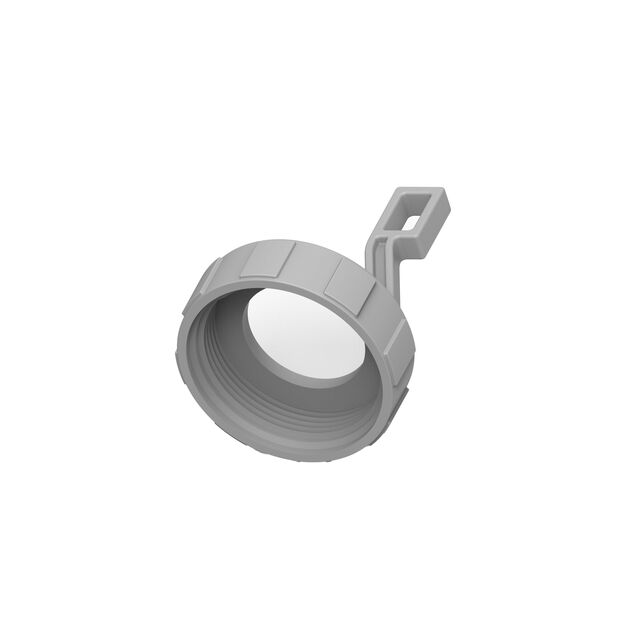

HD18-006
ActiveTE Connectivity Raychem Cable Protection
CONN BACKSHELL SZ6 GRAY 1 3/8-18
Deep-Dive with AI
Search across all available documentation for this part.
HD18-006
ActiveTE Connectivity Raychem Cable Protection
CONN BACKSHELL SZ6 GRAY 1 3/8-18
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HD18-006 |
|---|---|
| Cable Exit | 180 ° |
| Cable Opening [custom] | 38.43 mm |
| Cable Opening [custom] | 1.513 in |
| Color | Gray |
| Diameter - Outside [diameter] | 1.563 in |
| Diameter - Outside [diameter] | 39.7 mm |
| Features | Tie Wrap Holder |
| For Use With/Related Products | HD10 Rear Threaded Connector |
| Includes | 1 pc - 1 Backshell |
| Material | Plastic |
| Material Flammability Rating | UL94 V-0 |
| Primary Material | Plastic |
| Shell Size - Insert | 6 |
| Shielding | Unshielded |
| Thread Size | 1 3/8-18 UNEF |
| Type | Backshell |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 5.49 | |
| 10 | $ 4.20 | |||
| 40 | $ 3.60 | |||
| 80 | $ 3.34 | |||
| 120 | $ 3.19 | |||
| 280 | $ 2.92 | |||
| 520 | $ 2.74 | |||
| 1000 | $ 2.57 | |||
| 2520 | $ 2.35 | |||
Description
General part information
DEUTSCH HD10 Series
Gray Connector Backshell 1 3/8-18 UNEF 6
