HD10-3-96P
ActiveTE Connectivity Raychem Cable Protection

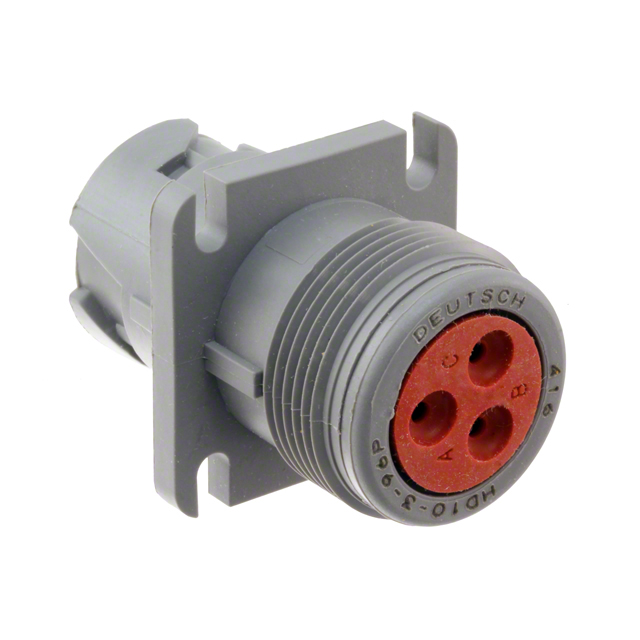

CONN RCPT HSNG MALE 3POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
HD10-3-96P
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT HSNG MALE 3POS PNL MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HD10-3-96P |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Gray |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Material Flammability Rating | UL94 V-1 |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shell Size - Insert [Max] | 96 |
| Shell Size - Insert [Min] | 3 |
| Shielding | Unshielded |
| Type | For Male Pins |
DEUTSCH HD10 Series
| Part | Note | Mounting Type | Material Flammability Rating | Fastening Type | Type | Orientation | Housing Color | Contact Type | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Contact Shape | Primary Material | Shielding | Ingress Protection | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Connector Type | Contact Size | Contact Size | Color | Mounting Feature | Contact Material | Shell Size - Insert [Min] [custom] | Shell Size - Insert [Max] [custom] | Number of Positions | Termination | Features | Includes | Cable Opening [custom] | Cable Opening [custom] | For Use With/Related Products | Shell Size - Insert | Thread Size | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Material | Cable Exit | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Contacts Not Included | Free Hanging (In-Line) | UL94 V-0 | Bayonet Lock | For Male Pins | Keyed | Gray | Crimp | Polyamide (PA) Nylon Glass Filled | -55 °C | 125 °C | Glass Filled Nylon Polyamide (PA) | Circular | Plastic | Unshielded | IP68 IP6K9K | 5 | 16 | Receptacle Housing | 16 | 5 | |||||||||||||||||||
TE Connectivity Raychem Cable Protection | Panel Mount Through Hole | Bayonet Lock | Keyed | Polyphenylene Sulfide (PPS) Glass Filled | Polyphenylene Sulfide (PPS) Glass Filled | Plastic | Unshielded | Male Pins Receptacle | Black | Flange | Copper Alloy | 9 | 96 | 9 | Solder | |||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | UL94 V-0 | Backshell | Plastic | Unshielded | Gray | Tie Wrap Holder | 1 pc - 1 Backshell | 38.43 mm | 1.513 in | HD10 Rear Threaded Connector | 6 | 1 3/8-18 UNEF | 1.563 in | 39.7 mm | Plastic | 180 ° | ||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Contacts Not Included | Free Hanging (In-Line) | UL94 V-1 | Bayonet Lock | For Male Pins | Keyed | Gray | Crimp | Polyamide (PA) Nylon Glass Filled | -40 °C | 125 °C | Glass Filled Nylon Polyamide (PA) | Circular | Unshielded | IP68 - Dust Tight Waterproof | 3 | 96 | Receptacle Housing | 16 | |||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Contacts Not Included | UL94 V-1 | Bayonet Lock | For Male Pins | Keyed | Gray | Crimp | Polyamide (PA) Nylon Glass Filled | -40 °C | 125 °C | Glass Filled Nylon Polyamide (PA) | Circular | Unshielded | IP68 - Dust Tight Waterproof | 3 | 96 | Receptacle Housing | 16 | Flange | |||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Contacts Not Included | UL94 V-1 | Bayonet Lock | For Male Pins | Keyed | Gray | Crimp | Polyamide (PA) Nylon Glass Filled | -40 °C | 125 °C | Glass Filled Nylon Polyamide (PA) | Circular | Unshielded | IP68 - Dust Tight Waterproof | 6 | 96 | Receptacle Housing | 16 | Flange | 6 | ||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Contacts Not Included | UL94 V-1 | Bayonet Lock | For Male Pins | Keyed | Black | Crimp | Polyamide (PA) Nylon Glass Filled | -40 °C | 125 °C | Glass Filled Nylon Polyamide (PA) | Circular | Unshielded | IP68 - Dust Tight Waterproof | 9 | 39 | Receptacle Housing | 16 | Flange | 9 | ||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Gray | HD10 Series Plug | 9 | Glass Filled Nylon Polyamide (PA) | Cap (Cover) Protective | |||||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Contacts Not Included | UL94 V-1 | Bayonet Lock | For Male Pins | Keyed | Green | Crimp | Plastic | -55 °C | 125 °C | Plastic | Circular | Unshielded | IP68 - Dust Tight Waterproof | 9 | 39 | Receptacle Housing | 16 | Flange | 9 | ||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Contacts Not Included | UL94 V-1 | Bayonet Lock | For Male Pins | Keyed | Gray | Crimp | Polyamide (PA) Nylon Glass Filled | -55 °C | 125 °C | Plastic | Circular | Plastic | Unshielded | Receptacle Housing | 16 | Flange | 9 | 96 | 9 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.72 | |
| 10 | $ 6.08 | |||
| 25 | $ 5.74 | |||
| 50 | $ 5.60 | |||
| 100 | $ 5.32 | |||
| 250 | $ 4.76 | |||
| 500 | $ 4.48 | |||
| 1000 | $ 3.92 | |||
| 2500 | $ 3.72 | |||
Description
General part information
DEUTSCH HD10 Series
3 Position Circular Connector Receptacle Housing Panel Mount
