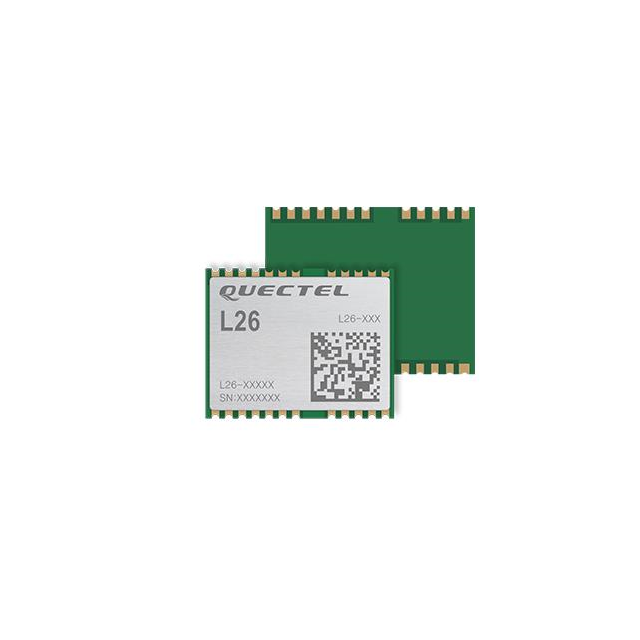

L26-M33
Quectel
RF TXRX MODULE NAVIGATION SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L26-M33
Quectel
RF TXRX MODULE NAVIGATION SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L26-M33 |
|---|---|
| Antenna Type | Antenna Not Included |
| Data Rate | 115.2 kbps |
| Frequency | 1.602 GHz, 1.575 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-SMD Module |
| Protocol | GNSS, GLONASS, GPS |
| RF Family/Standard | Navigation |
| Sensitivity | -167 dBm |
| Serial Interfaces | UART |
| Utilized IC / Part | MT3333 |
| Voltage - Supply [Max] | 4.3 V |
| Voltage - Supply [Min] | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 11.02 | |
| 10 | $ 9.97 | |||
| 25 | $ 9.19 | |||
| 100 | $ 8.40 | |||
| Digi-Reel® | 1 | $ 11.02 | ||
| 10 | $ 9.97 | |||
| 25 | $ 9.19 | |||
| 100 | $ 8.40 | |||
| Tape & Reel (TR) | 250 | $ 7.88 | ||
| 500 | $ 7.35 | |||
| 750 | $ 7.09 | |||
| 1250 | $ 6.98 | |||
Description
General part information
L26 Series
Navigation GLONASS, GPS, GNSS Transceiver Module 1.575GHz, 1.602GHz Antenna Not Included Surface Mount
