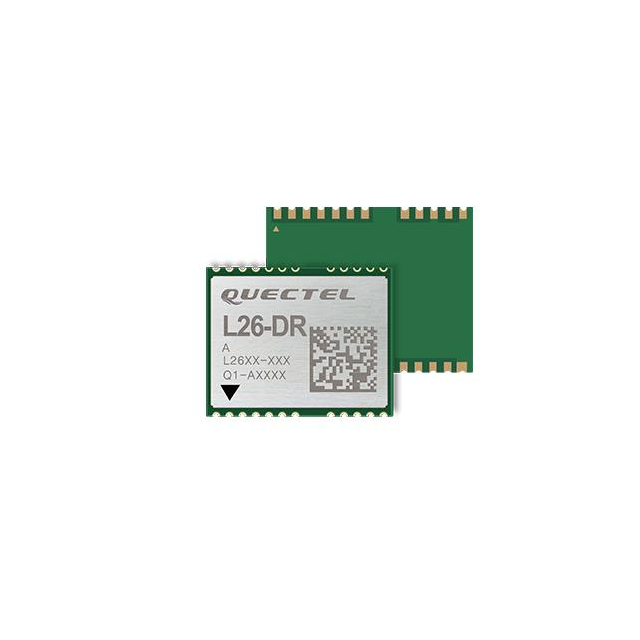

Specification	L26ADR-S89

Antenna Type	Antenna Not Included
Data Rate	921.6 kBaud
Frequency	1.575 GHz, 1.561 GHz, 1.602 GHz
Frequency	1.602GHz, 1.561GHz, 1.575GHz
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	24-SMD Module
Protocol	BeiDou, Galileo, GPS, GLONASS, GNSS
RF Family/Standard	Navigation
Sensitivity	-162 dBm
Serial Interfaces	UART
Utilized IC / Part	STA8089FG
Voltage - Supply (Maximum)	3.6 V
Voltage - Supply (Minimum)	3 V

L26 Series

Part	For Use With/Related Products	Supplied Contents	Contents	Type	Utilized IC / Part	Antenna Type	Sensitivity	Operating Temperature (Min)	Operating Temperature (Max)	Data Rate	Mounting Type	Frequency	Frequency	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Protocol	Package / Case	Serial Interfaces	RF Family/Standard
Quectel L26EVB-KIT	L26	Accessories Board(s) Cable(s)	Accessories Board Cable	GNSS	L26
Quectel L26LB-A31					AG3331	Antenna Not Included	-165 dBm	-40 °C	85 °C	921.6 kBaud	Surface Mount	1.561 GHz 1.575 GHz 1.602 GHz	1.561GHz 1.575GHz 1.602GHz	2.7 V	2.9 V	BeiDou Galileo GLONASS GNSS GPS	24-SMD Module	I2C UART	Navigation
Quectel L26ADR-S89					STA8089FG	Antenna Not Included	-162 dBm	-40 °C	85 °C	921.6 kBaud	Surface Mount	1.561 GHz 1.575 GHz 1.602 GHz	1.561GHz 1.575GHz 1.602GHz	3 V	3.6 V	BeiDou Galileo GLONASS GNSS GPS	24-SMD Module	UART	Navigation
Quectel L26T-S89					STA8089FG	Antenna Not Included		-40 °C	85 °C		Surface Mount			3 V	3.6 V	BeiDou Galileo GLONASS GNSS GPS	24-SMD Module		Navigation
Quectel L26P-S89						Antenna Not Included					Surface Mount					BeiDou Galileo GLONASS GNSS GPS	24-SMD Module		Navigation
Quectel L26-M33					MT3333	Antenna Not Included	-167 dBm	-40 °C	85 °C	115.2 kbps	Surface Mount	1.575 GHz 1.602 GHz	1.575GHz 1.602GHz	2.8 V	4.3 V	GLONASS GNSS GPS	24-SMD Module	UART	Navigation
Quectel L26TEVB-KIT	L26-T	Board(s)	Board	Transceiver	L26-T
Quectel L26UDR-S89					STA8089FG	Antenna Not Included	-162 dBm	-40 °C	85 °C	921.6 kBaud	Surface Mount	1.561 GHz 1.575 GHz 1.602 GHz	1.561GHz 1.575GHz 1.602GHz	3 V	3.6 V	BeiDou Galileo GLONASS GNSS GPS	24-SMD Module	UART	Navigation
