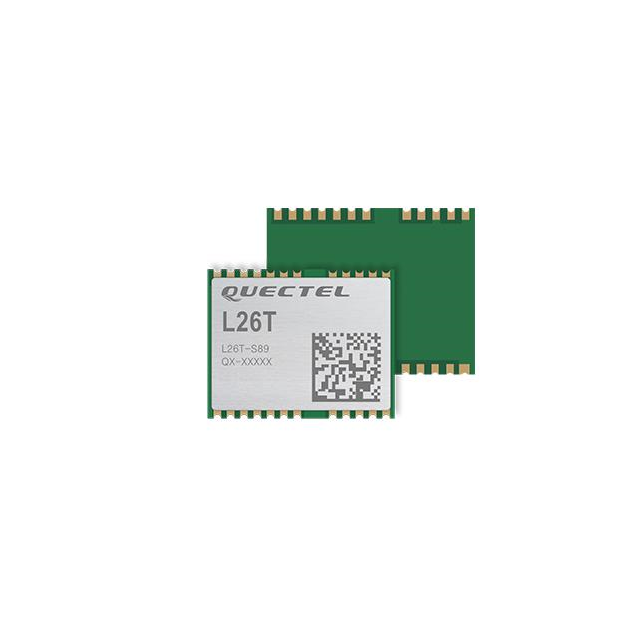

L26T-S89
ActiveQuectel
RF TXRX MODULE NAVIGATION SMD
Deep-Dive with AI
Search across all available documentation for this part.
L26T-S89
ActiveQuectel
RF TXRX MODULE NAVIGATION SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L26T-S89 |
|---|---|
| Antenna Type | Antenna Not Included |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-SMD Module |
| Protocol | GPS, Galileo, GLONASS, Beidou, GNSS |
| RF Family/Standard | Navigation |
| Utilized IC / Part | STA8089FG |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 21.94 | |
| 10 | $ 20.25 | |||
| 25 | $ 18.56 | |||
| 100 | $ 17.16 | |||
| Digi-Reel® | 1 | $ 21.94 | ||
| 10 | $ 20.25 | |||
| 25 | $ 18.56 | |||
| 100 | $ 17.16 | |||
| Tape & Reel (TR) | 250 | $ 16.31 | ||
| 500 | $ 15.19 | |||
Description
General part information
L26 Series
Navigation BeiDou, Galileo, GLONASS, GPS, GNSS Transceiver Module Antenna Not Included Surface Mount
Documents
Technical documentation and resources
No documents available
