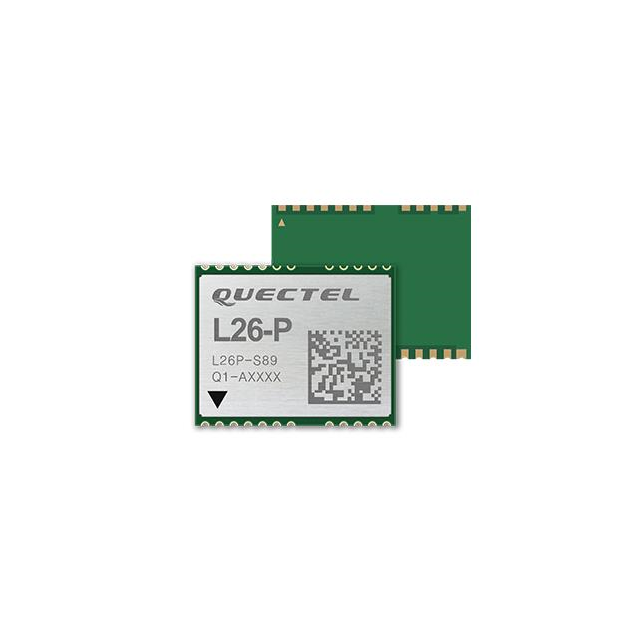

L26P-S89

Obsolete

Quectel

RF TXRX MODULE NAVIGATION SMD

Search across all available documentation for this part.

Obsolete

Quectel

RF TXRX MODULE NAVIGATION SMD

Technical Specifications

Parameters and characteristics for this part

Specification	L26P-S89

Antenna Type	Antenna Not Included
Mounting Type	Surface Mount
Package / Case	24-SMD Module
Protocol	GPS, Galileo, GLONASS, Beidou, GNSS
RF Family/Standard	Navigation

Part	Type	Supplied Contents	For Use With/Related Products	Utilized IC / Part	Package / Case	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Antenna Type	Data Rate	Mounting Type	RF Family/Standard	Serial Interfaces	Sensitivity	Protocol
Quectel L26EVB-KIT	GNSS	Accessories Board(s) Cable(s)	L26
Quectel L26LB-A31				AG3331	24-SMD Module	1.561 GHz 1.575 GHz 1.602 GHz	85 °C	-40 °C	2.9 V	2.7 V	Antenna Not Included	921.6 kbps	Surface Mount	Navigation	I2C UART	-165 dBm	Beidou Galileo GLONASS GNSS GPS
Quectel L26ADR-S89				STA8089FG	24-SMD Module	1.561 GHz 1.575 GHz 1.602 GHz	85 °C	-40 °C	3.6 V	3 V	Antenna Not Included	921.6 kbps	Surface Mount	Navigation	UART	-162 dBm	Beidou Galileo GLONASS GNSS GPS
Quectel L26T-S89				STA8089FG	24-SMD Module		85 °C	-40 °C	3.6 V	3 V	Antenna Not Included		Surface Mount	Navigation			Beidou Galileo GLONASS GNSS GPS
Quectel L26P-S89					24-SMD Module						Antenna Not Included		Surface Mount	Navigation			Beidou Galileo GLONASS GNSS GPS
Quectel L26-M33				MT3333	24-SMD Module	1.575 GHz 1.602 GHz	85 °C	-40 °C	4.3 V	2.8 V	Antenna Not Included	115.2 kbps	Surface Mount	Navigation	UART	-167 dBm	GLONASS GNSS GPS
Quectel L26TEVB-KIT	Transceiver	Board(s)	L26-T
Quectel L26UDR-S89				STA8089FG	24-SMD Module	1.561 GHz 1.575 GHz 1.602 GHz	85 °C	-40 °C	3.6 V	3 V	Antenna Not Included	921.6 kbps	Surface Mount	Navigation	UART	-162 dBm	Beidou Galileo GLONASS GNSS GPS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Navigation BeiDou, Galileo, GLONASS, GPS, GNSS Transceiver Module Antenna Not Included Surface Mount

Technical documentation and resources

No documents available
