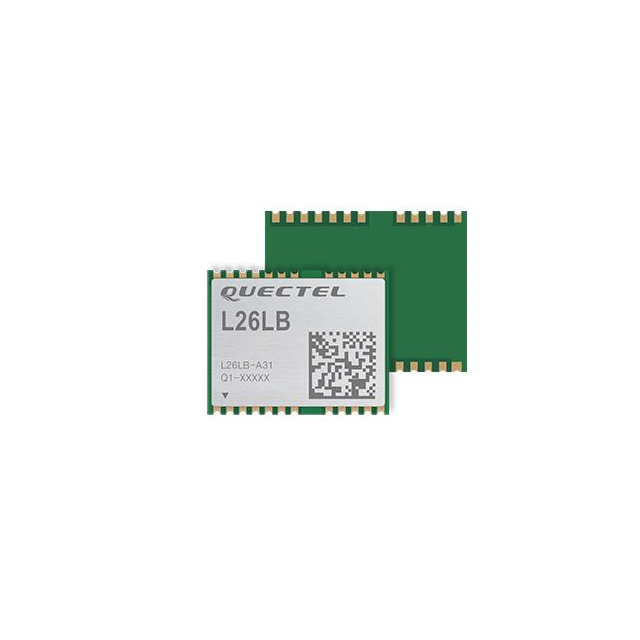

L26LB-A31
ObsoleteQuectel
RF TXRX MODULE NAVIGATION SMD
Deep-Dive with AI
Search across all available documentation for this part.
L26LB-A31
ObsoleteQuectel
RF TXRX MODULE NAVIGATION SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L26LB-A31 |
|---|---|
| Antenna Type | Antenna Not Included |
| Data Rate | 921.6 kbps |
| Frequency | 1.602 GHz, 1.561 GHz, 1.575 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-SMD Module |
| Protocol | GPS, Galileo, GLONASS, Beidou, GNSS |
| RF Family/Standard | Navigation |
| Sensitivity | -165 dBm |
| Serial Interfaces | UART, I2C |
| Utilized IC / Part | AG3331 |
| Voltage - Supply [Max] | 2.9 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 10.20 | |
| 10 | $ 9.35 | |||
| 25 | $ 8.50 | |||
| 100 | $ 7.65 | |||
| Digi-Reel® | 1 | $ 10.20 | ||
| 10 | $ 9.35 | |||
| 25 | $ 8.50 | |||
| 100 | $ 7.65 | |||
| Tape & Reel (TR) | 250 | $ 7.01 | ||
| 500 | $ 6.38 | |||
| 750 | $ 6.16 | |||
| 1250 | $ 5.74 | |||
Description
General part information
L26 Series
Navigation BeiDou, Galileo, GLONASS, GPS, GNSS Transceiver Module 1.561GHz, 1.575GHz, 1.602GHz Antenna Not Included Surface Mount
