EB163A-06-C-180 - EB163A-06-C-180

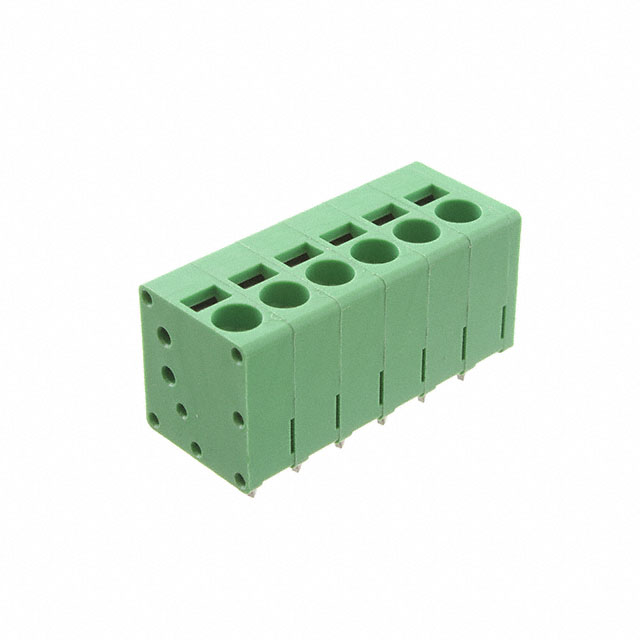

EB163A-06-C-180

Active
Adam Tech

CONN TERMINAL BLOCK 6 POS 5MM SOLDER ST THRU-HOLE 20A BOX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsXCFR8.E333935- Terminal Blocks Certified for CanadaXCFR2.E333935- Terminal Blocks+2
EB163A-06-C-180 - EB163A-06-C-180

EB163A-06-C-180

Active
Adam Tech

CONN TERMINAL BLOCK 6 POS 5MM SOLDER ST THRU-HOLE 20A BOX

Deep-Dive with AI

DocumentsXCFR8.E333935- Terminal Blocks Certified for CanadaXCFR2.E333935- Terminal Blocks+2

Technical Specifications

Parameters and characteristics for this part

SpecificationEB163A-06-C-180
ColorGreen
Contact Material - PlatingCopper Alloy - Tin Plated
Current20 A
Housing MaterialPolyamide (PA), Nylon
Mating OrientationVertical with Board
Mounting TypeThrough Hole
Number of Levels1
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Pitch [x]5 mm
Pitch [x]0.197 in
Positions Per Level6
Voltage300 V
Wire Gauge [Max]24 AWG
Wire Gauge [Min]12 AWG
Wire TerminationPush-In Spring, Screwless - Leg Spring

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 1.57
10$ 1.32
25$ 1.21
50$ 1.14
DigikeyBox 1$ 2.65
10$ 1.65
25$ 1.45
50$ 1.35
100$ 1.27
250$ 1.19
500$ 1.15
1000$ 1.12
5000$ 1.07

Description

General part information

EB163A Series

6 Position Wire to Board Terminal Block Vertical with Board 0.197" (5.00mm) Through Hole
