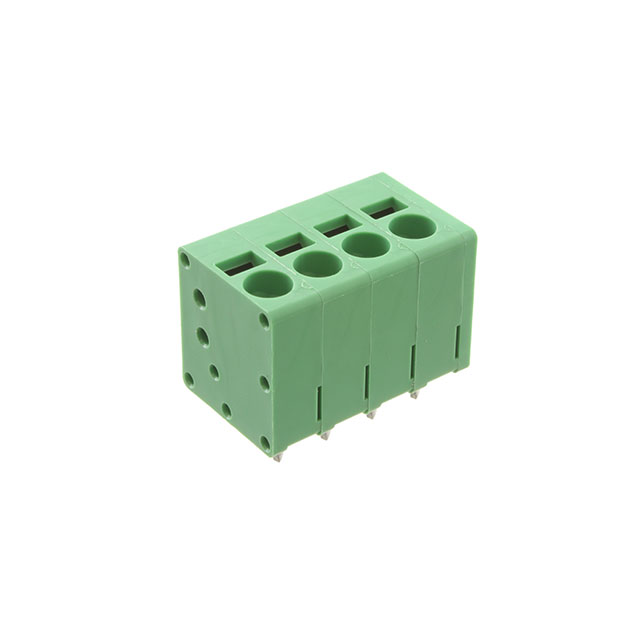

EB163A-04-C-180

Active

Adam Tech

EURO BLOCK, 4 POSITION

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet XCFR8.E333935- Terminal Blocks Certified for Canada +2

EB163A-04-C-180

Active

Adam Tech

EURO BLOCK, 4 POSITION

Deep-Dive with AI

DocumentsDatasheet XCFR8.E333935- Terminal Blocks Certified for Canada +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EB163A-04-C-180

Color	Green
Contact Material - Plating	Copper Alloy - Tin Plated
Current	20 A
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Vertical with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	4
Voltage	300 V
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	12 AWG
Wire Termination	Push-In Spring, Screwless - Leg Spring

EB163A Series

Part	Wire Gauge [Min]	Wire Gauge [Max]	Wire Termination	Voltage	Mating Orientation	Positions Per Level	Housing Material	Color	Current	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Levels	Pitch [x]	Pitch [x]	Contact Material - Plating
Adam Tech EB163A-05-C	12 AWG	24 AWG	Push-In Spring Screwless - Leg Spring	300 V	Horizontal with Board	5	Polyamide (PA) Nylon	Green	20 A	-40 °C	105 ░C	Through Hole	1	5 mm	0.197 in	Copper Alloy - Tin Plated
Adam Tech EB163A-03-C-180	12 AWG	24 AWG	Push-In Spring Screwless - Leg Spring	300 V	Vertical with Board	3	Polyamide (PA) Nylon	Green	20 A	-40 °C	105 ░C	Through Hole	1	5 mm	0.197 in	Copper Alloy - Tin Plated
Adam Tech EB163A-03-C	12 AWG	24 AWG	Push-In Spring Screwless - Leg Spring	300 V	Horizontal with Board	3	Polyamide (PA) Nylon	Green	20 A	-40 °C	105 ░C	Through Hole	1	5 mm	0.197 in	Copper Alloy - Tin Plated
Adam Tech EB163A-04-C-180	12 AWG	24 AWG	Push-In Spring Screwless - Leg Spring	300 V	Vertical with Board	4	Polyamide (PA) Nylon	Green	20 A	-40 °C	105 ░C	Through Hole	1	5 mm	0.197 in	Copper Alloy - Tin Plated
Adam Tech EB163A-03-A-180	16 AWG	24 AWG	Push-In Spring Screwless - Leg Spring	300 V	Vertical with Board	3	Polyamide (PA) Nylon	Green	10 A	-40 °C	105 ░C	Through Hole	1	3.5 mm	0.138 in
Adam Tech EB163A-04-A-180	16 AWG	24 AWG	Push-In Spring Screwless - Leg Spring	300 V	Vertical with Board	4	Polyamide (PA) Nylon	Green	10 A	-40 °C	105 ░C	Through Hole	1	3.5 mm	0.138 in
Adam Tech EB163A-05-C-180	12 AWG	24 AWG	Push-In Spring Screwless - Leg Spring	300 V	Vertical with Board	5	Polyamide (PA) Nylon	Green	20 A	-40 °C	105 ░C	Through Hole	1	5 mm	0.197 in	Copper Alloy - Tin Plated
Adam Tech EB163A-06-A-180	16 AWG	24 AWG	Push-In Spring Screwless - Leg Spring	300 V	Vertical with Board	6	Polyamide (PA) Nylon	Green	10 A	-40 °C	105 ░C	Through Hole	1	3.5 mm	0.138 in
Adam Tech EB163A-02-C	12 AWG	24 AWG	Push-In Spring Screwless - Leg Spring	300 V	Horizontal with Board	2	Polyamide (PA) Nylon	Green	20 A	-40 °C	105 ░C	Through Hole	1	5 mm	0.197 in	Copper Alloy - Tin Plated
Adam Tech EB163A-06-C-180	12 AWG	24 AWG	Push-In Spring Screwless - Leg Spring	300 V	Vertical with Board	6	Polyamide (PA) Nylon	Green	20 A	-40 °C	105 ░C	Through Hole	1	5 mm	0.197 in	Copper Alloy - Tin Plated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.47
		10	$ 0.88
		25	$ 0.76
		50	$ 0.73

Description

General part information

EB163A Series

4 Position Wire to Board Terminal Block Vertical with Board 0.197" (5.00mm) Through Hole
