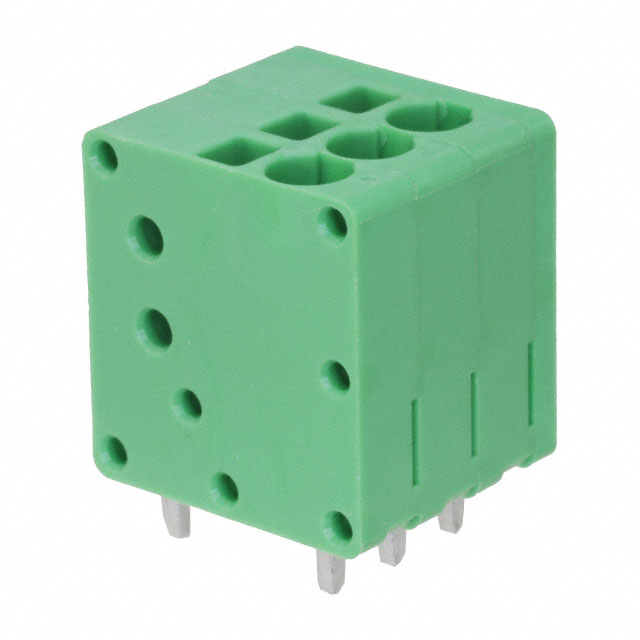

EB163A-03-A-180 - EB163A-03-A-180

EB163A-03-A-180

Active
Adam Tech

3.5MM 10A 3P 300V STRAIGHT GREEN 3 1 PLUGIN,P=3.5MM SPRING CLAMP SYSTEM TERMINAL BLOCK ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsXCFR2.E333935- Terminal BlocksMedical Industry Brochure+2
EB163A-03-A-180 - EB163A-03-A-180

EB163A-03-A-180

Active
Adam Tech

3.5MM 10A 3P 300V STRAIGHT GREEN 3 1 PLUGIN,P=3.5MM SPRING CLAMP SYSTEM TERMINAL BLOCK ROHS

Deep-Dive with AI

DocumentsXCFR2.E333935- Terminal BlocksMedical Industry Brochure+2

Technical Specifications

Parameters and characteristics for this part

SpecificationEB163A-03-A-180
ColorGreen
Current10 A
Housing MaterialPolyamide (PA), Nylon
Mating OrientationVertical with Board
Mounting TypeThrough Hole
Number of Levels1
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Pitch [x]3.5 mm
Pitch [x]0.138 in
Positions Per Level3
Voltage300 V
Wire Gauge [Max]24 AWG
Wire Gauge [Min]16 AWG
Wire TerminationPush-In Spring, Screwless - Leg Spring

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.70
10$ 0.97
25$ 0.82
50$ 0.74
100$ 0.68
250$ 0.63
500$ 0.60
1000$ 0.58
5000$ 0.54
LCSCPiece 1$ 0.99
200$ 0.40
400$ 0.38
800$ 0.38

Description

General part information

EB163A Series

3 Position Wire to Board Terminal Block Vertical with Board 0.138" (3.50mm) Through Hole
