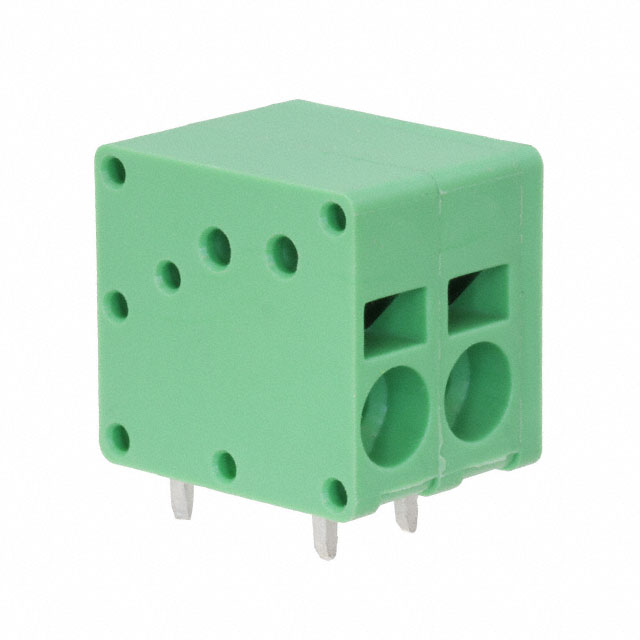

EB163A-02-C - EB163A-02-C

EB163A-02-C

Active
Adam Tech

EURO BLOCK, 2 POSITION

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMedical Industry BrochureXCFR8.E333935- Terminal Blocks Certified for Canada+2
EB163A-02-C - EB163A-02-C

EB163A-02-C

Active
Adam Tech

EURO BLOCK, 2 POSITION

Deep-Dive with AI

DocumentsMedical Industry BrochureXCFR8.E333935- Terminal Blocks Certified for Canada+2

Technical Specifications

Parameters and characteristics for this part

SpecificationEB163A-02-C
ColorGreen
Contact Material - PlatingCopper Alloy - Tin Plated
Current20 A
Housing MaterialPolyamide (PA), Nylon
Mating OrientationHorizontal with Board
Mounting TypeThrough Hole
Number of Levels1
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Pitch [x]5 mm
Pitch [x]0.197 in
Positions Per Level2
Voltage300 V
Wire Gauge [Max]24 AWG
Wire Gauge [Min]12 AWG
Wire TerminationPush-In Spring, Screwless - Leg Spring

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 1.38
10$ 0.75
25$ 0.62
50$ 0.56
100$ 0.51
250$ 0.46
500$ 0.43
1000$ 0.41
5000$ 0.39

Description

General part information

EB163A Series

2 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
