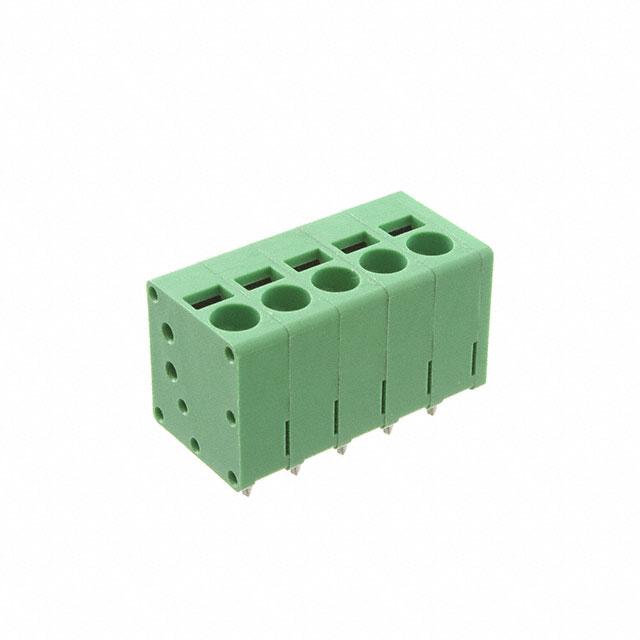

EB163A-05-C-180
ActiveAdam Tech
EURO BLOCK, 5 POSITION
Deep-Dive with AI
Search across all available documentation for this part.
EB163A-05-C-180
ActiveAdam Tech
EURO BLOCK, 5 POSITION
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EB163A-05-C-180 |
|---|---|
| Color | Green |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 20 A |
| Housing Material | Polyamide (PA), Nylon |
| Mating Orientation | Vertical with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 5 |
| Voltage | 300 V |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 12 AWG |
| Wire Termination | Push-In Spring, Screwless - Leg Spring |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 2.42 | |
| 10 | $ 1.48 | |||
| 25 | $ 1.29 | |||
| 50 | $ 1.19 | |||
| 100 | $ 1.11 | |||
| 250 | $ 1.04 | |||
| 500 | $ 1.00 | |||
| 1000 | $ 0.97 | |||
| 5000 | $ 0.93 | |||
Description
General part information
EB163A Series
5 Position Wire to Board Terminal Block Vertical with Board 0.197" (5.00mm) Through Hole
