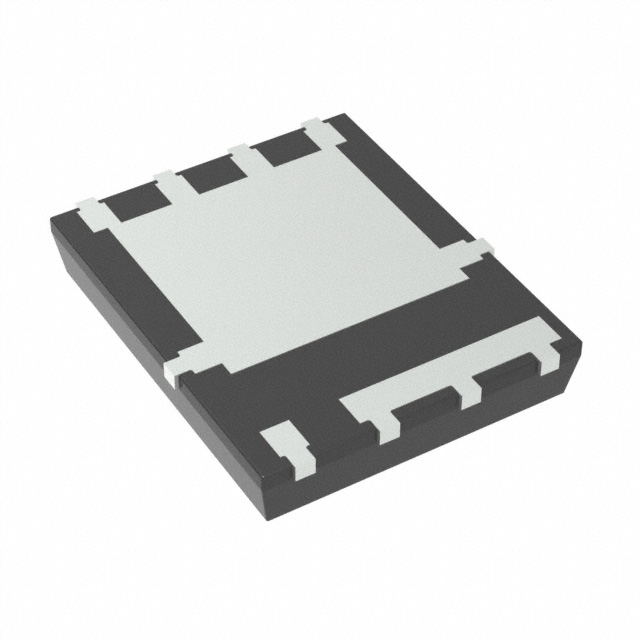

BSC014N06NSATMA1
ActiveOPTIMOS™ 5 N-CHANNEL POWER MOSFET 60 V ; SUPERSO8 5X6 PACKAGE; 1.45 MOHM;
Deep-Dive with AI
Search across all available documentation for this part.
BSC014N06NSATMA1
ActiveOPTIMOS™ 5 N-CHANNEL POWER MOSFET 60 V ; SUPERSO8 5X6 PACKAGE; 1.45 MOHM;
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BSC014N06NSATMA1 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 30 A, 100 A |
| Drain to Source Voltage (Vdss) | 60 V |
| Drive Voltage (Max Rds On, Min Rds On) | 6 V, 10 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 89 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 6500 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 8-PowerTDFN |
| Power Dissipation (Max) | 2.5 W, 156 W |
| Rds On (Max) @ Id, Vgs | 1.45 mOhm |
| Supplier Device Package | PG-TDSON-8-17 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id [Max] | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BSC014 Series
OptiMOS™ 5 60V is optimized for synchronous rectification in switched mode power supplies (SMPS) such as those found in servers and desktops and tablet charger. In addition these devices are a perfect choice for a broad range of industrial applications including motor control, solar micro inverter and fast switching DC-DC converter.
