BSC014N06NSSCATMA1

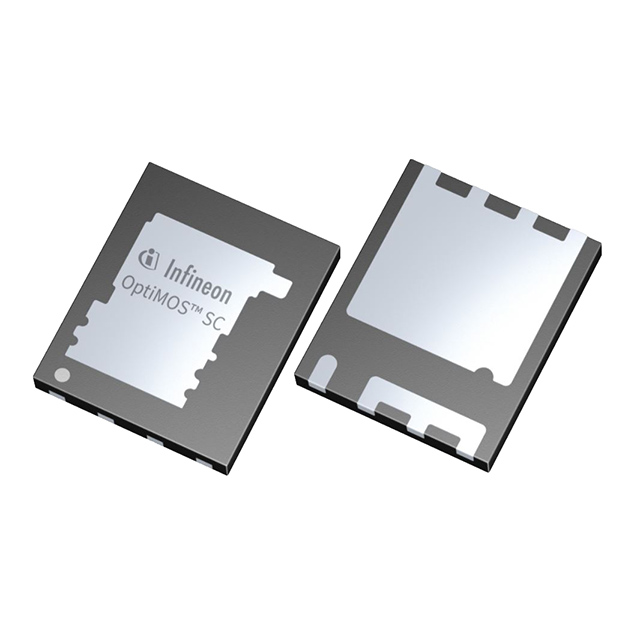

ActiveOPTIMOS™ N-CHANNEL POWER MOSFET 60 V ; SUPERSO8 5X6 SUPER COOL PACKAGE; 1.4 MOHM;
Deep-Dive with AI
Search across all available documentation for this part.
BSC014N06NSSCATMA1
ActiveOPTIMOS™ N-CHANNEL POWER MOSFET 60 V ; SUPERSO8 5X6 SUPER COOL PACKAGE; 1.4 MOHM;
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BSC014N06NSSCATMA1 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 261 A |
| Drain to Source Voltage (Vdss) | 60 V |
| Drive Voltage (Max Rds On, Min Rds On) | 6 V, 10 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 104 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 8125 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 8-PowerWDFN |
| Power Dissipation (Max) | 3 W, 188 W |
| Rds On (Max) @ Id, Vgs | 1.4 mOhm |
| Supplier Device Package | PG-WSON-8-2 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BSC014 Series
OptiMOS™ 5 60 V power MOSFETsinSuperSO8 DSC (dual-side cooling)package offer all thermal management benefits of dual-side cooling solutions with industry-standard footprint. SuperSO8 DSC allows excellent thermal performance with two paths for heat dissipation (bottom through PCB + top through exposed clip and heatsink). About 30% of the heat generated on the MOSFET die is transferred through the top and less heat is transferred to the PCB. Thus,
