IPDQ60R040S7AXTMA1

Active

Infineon Technologies

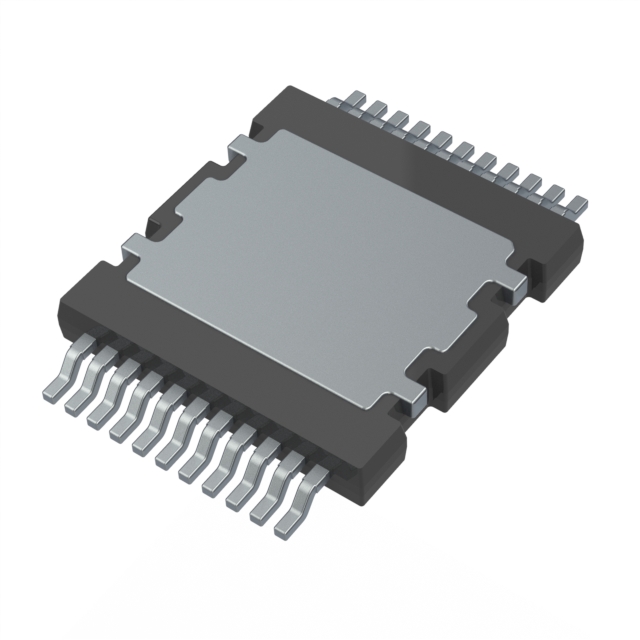

MOSFET, N-CH, 600V, 14A, HDSOP ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IPDQ60R040S7AXTMA1

Active

Infineon Technologies

MOSFET, N-CH, 600V, 14A, HDSOP ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPDQ60R040S7AXTMA1

Current - Continuous Drain (Id) @ 25°C	14 A
Drain to Source Voltage (Vdss)	600 V
Drive Voltage (Max Rds On, Min Rds On)	12 V, 12 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	83 nC
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	22-PowerBSOP Module
Power Dissipation (Max)	272 W
Qualification	AEC-Q101
Rds On (Max) @ Id, Vgs	40 mOhm
Supplier Device Package	PG-HDSOP-22-1
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	4.5 V

IPDQ60R Series

Part	Technology	Package / Case	Mounting Type	Supplier Device Package	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id	Gate Charge (Qg) (Max) @ Vgs [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Drive Voltage (Max Rds On, Min Rds On)	FET Type	Grade	Qualification	Power Dissipation (Max) [Max]	Input Capacitance (Ciss) (Max) @ Vds	Current - Continuous Drain (Id) @ 25°C	Vgs (Max)	Power Dissipation (Max)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Gate Charge (Qg) (Max) @ Vgs
Infineon Technologies IPDQ60R035CFD7XTMA1	MOSFET (Metal Oxide)	22-PowerBSOP Module	Surface Mount	PG-HDSOP-22-1	600 V
Infineon Technologies IPDQ60R010S7AXTMA1	MOSFET (Metal Oxide)	22-PowerBSOP Module	Surface Mount	PG-HDSOP-22-1	600 V	10 mOhm	4.5 V	318 nC	150 °C	-40 °C	12 V 12 V	N-Channel	Automotive	AEC-Q101	694 W	11987 pF	50 A	20 V
Infineon Technologies IPDQ60R040S7AXTMA1	MOSFET (Metal Oxide)	22-PowerBSOP Module	Surface Mount	PG-HDSOP-22-1	600 V	40 mOhm	4.5 V	83 nC	150 °C	-40 °C	12 V 12 V	N-Channel	Automotive	AEC-Q101			14 A	20 V	272 W
Infineon Technologies IPDQ60R022S7AXTMA1	MOSFET (Metal Oxide)	22-PowerBSOP Module	Surface Mount	PG-HDSOP-22-1	600 V	22 mOhm	4.5 V	150 nC	150 °C	-40 °C	12 V 12 V	N-Channel	Automotive	AEC-Q101			24 A	20 V	416 W
Infineon Technologies IPDQ60R017S7AXTMA1	MOSFET (Metal Oxide)	22-PowerBSOP Module	Surface Mount	PG-HDSOP-22-1	600 V	17 mOhm	4.5 V		150 °C	-40 °C	12 V 12 V	N-Channel					30 A	20 V	500 W	7370 pF	196 nC
Infineon Technologies IPDQ60R017S7XTMA1	MOSFET (Metal Oxide)	22-PowerBSOP Module	Surface Mount	PG-HDSOP-22-1	600 V	17 mOhm	4.5 V		150 °C	-55 °C	12 V 12 V	N-Channel					30 A	20 V	500 W	7370 pF	196 nC
