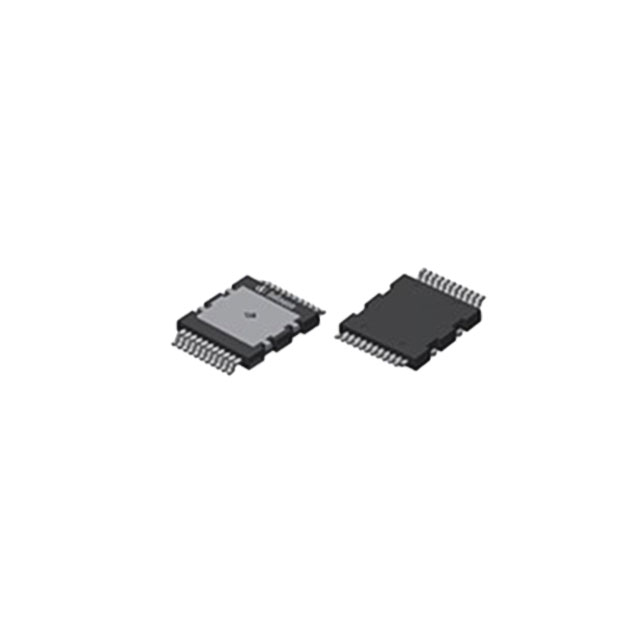

IPDQ60R010S7AXTMA1
ActiveINFINEON’S LOWEST RDS(ON) 600V SJ MOSFET IPDQ60R010S7A COMES IN THE NOVEL TOP-SIDE- COOLED QDPAK PACKAGE AND IS IDEAL FOR LOW-FREQUENCY SWITCHING APPLICATIONS.
Deep-Dive with AI
Search across all available documentation for this part.
IPDQ60R010S7AXTMA1
ActiveINFINEON’S LOWEST RDS(ON) 600V SJ MOSFET IPDQ60R010S7A COMES IN THE NOVEL TOP-SIDE- COOLED QDPAK PACKAGE AND IS IDEAL FOR LOW-FREQUENCY SWITCHING APPLICATIONS.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IPDQ60R010S7AXTMA1 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 50 A |
| Drain to Source Voltage (Vdss) | 600 V |
| Drive Voltage (Max Rds On, Min Rds On) | 12 V, 12 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 318 nC |
| Grade | Automotive |
| Input Capacitance (Ciss) (Max) @ Vds | 11987 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 22-PowerBSOP Module |
| Power Dissipation (Max) [Max] | 694 W |
| Qualification | AEC-Q101 |
| Rds On (Max) @ Id, Vgs | 10 mOhm |
| Supplier Device Package | PG-HDSOP-22-1 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 20.35 | |
| 10 | $ 18.77 | |||
| 25 | $ 17.92 | |||
| 100 | $ 16.03 | |||
| 250 | $ 15.29 | |||
| Digi-Reel® | 1 | $ 20.35 | ||
| 10 | $ 18.77 | |||
| 25 | $ 17.92 | |||
| 100 | $ 16.03 | |||
| 250 | $ 15.29 | |||
| Tape & Reel (TR) | 750 | $ 14.55 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 22.17 | |
| 10 | $ 18.48 | |||
| 25 | $ 17.34 | |||
| 50 | $ 16.71 | |||
| 100 | $ 16.08 | |||
| 250 | $ 15.48 | |||
| 500 | $ 14.92 | |||
| 1500 | $ 14.91 | |||
Description
General part information
IPDQ60R Series
The automotive qualified AEC-Q101,600 V CoolMOS™ S7A SJ MOSFETfamily is optimized to offer low conduction losses and features the lowest RDS(on)in the market when it comes to high-voltage SJ MOSFETs. It comes with an unprecedented RDS(on)x price figure of merit and is a perfect fit for HV eFuse, HV eDisconnect andon-board chargerPFC stage in an active line configuration.
