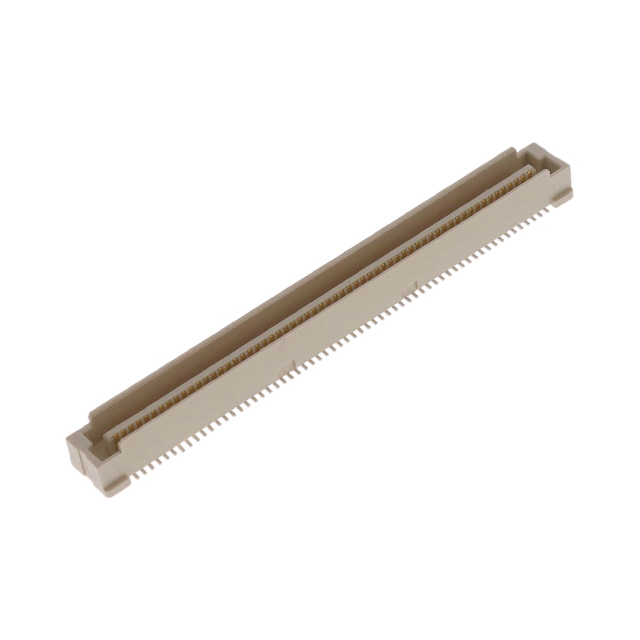

10144518-121802LF
ActiveAmphenol ICC (FCI)
0.8MM BTB PLUG 1
Deep-Dive with AI
Search across all available documentation for this part.
10144518-121802LF
ActiveAmphenol ICC (FCI)
0.8MM BTB PLUG 1
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10144518-121802LF |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Features | Pick and Place, Board Guide |
| Height Above Board | 4.7 mm |
| Height Above Board | 0.185 in |
| Mated Stacking Heights | 5 mm, 13 mm, 9 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 120 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
10144518 Series
| Part | Number of Positions | Features | Height Above Board [z] | Height Above Board [z] | Contact Finish | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Mated Stacking Heights | Mounting Type | Height Above Board | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 60 | Board Guide Pick and Place | 0.303 in | 7.7 mm | Gold | 2 | 8 çin | 0.203 çm | 0.8 mm | 0.031 in | 8 mm 12 mm 16 mm | Surface Mount | ||
Amphenol ICC (FCI) | 40 | Board Guide Pick and Place | Gold | 2 | 8 çin | 0.203 çm | 0.8 mm | 0.031 in | 6 mm 10 mm 14 mm | Surface Mount | 0.224 in | 5.7 mm | ||
Amphenol ICC (FCI) | 80 | Board Guide Pick and Place | Gold | 2 | 8 çin | 0.203 çm | 0.8 mm | 0.031 in | 6 mm 10 mm 14 mm | Surface Mount | 0.224 in | 5.7 mm | ||
Amphenol ICC (FCI) | 120 | Board Guide Pick and Place | Gold | 2 | 8 çin | 0.203 çm | 0.8 mm | 0.031 in | 5 mm 9 mm 13 mm | Surface Mount | 0.185 in | 4.7 mm | ||
Amphenol ICC (FCI) | 60 | Board Guide Pick and Place | Gold | 2 | 8 çin | 0.203 çm | 0.8 mm | 0.031 in | 6 mm 10 mm 14 mm | Surface Mount | 0.224 in | 5.7 mm | ||
Amphenol ICC (FCI) | 100 | Board Guide Pick and Place | Gold | 2 | 8 çin | 0.203 çm | 0.8 mm | 0.031 in | 6 mm 10 mm 14 mm | Surface Mount | 0.224 in | 5.7 mm | ||
Amphenol ICC (FCI) | 60 | Board Guide Pick and Place | Gold | 2 | 8 çin | 0.203 çm | 0.8 mm | 0.031 in | 5 mm 9 mm 13 mm | Surface Mount | 0.185 in | 4.7 mm | ||
Amphenol ICC (FCI) | 40 | Board Guide Pick and Place | Gold | 2 | 8 çin | 0.203 çm | 0.8 mm | 0.031 in | 5 mm 9 mm 13 mm | Surface Mount | 0.185 in | 4.7 mm | ||
Amphenol ICC (FCI) | 100 | Board Guide Pick and Place | 0.303 in | 7.7 mm | Gold | 2 | 8 çin | 0.203 çm | 0.8 mm | 0.031 in | 8 mm 12 mm 16 mm | Surface Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.98 | |
| 10 | $ 1.51 | |||
| 25 | $ 1.36 | |||
| 50 | $ 1.25 | |||
| 100 | $ 1.16 | |||
| 250 | $ 1.05 | |||
| Tape & Reel (TR) | 650 | $ 0.95 | ||
| 1300 | $ 0.88 | |||
| 1950 | $ 0.85 | |||
| 3250 | $ 0.81 | |||
| 4550 | $ 0.78 | |||
| 6500 | $ 0.76 | |||
Description
General part information
10144518 Series
120 Position Connector Plug, Center Strip Contacts Surface Mount Gold
