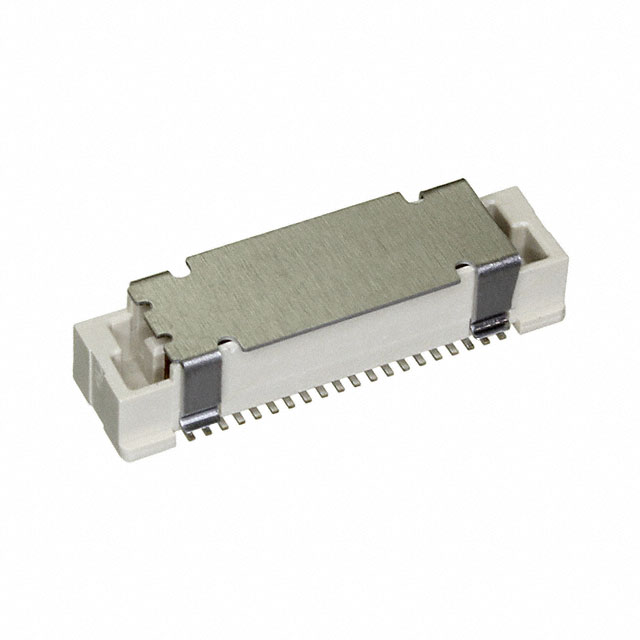

10144518-041802LF
ActiveAmphenol ICC (FCI)
CONN PLUG 40POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
10144518-041802LF
ActiveAmphenol ICC (FCI)
CONN PLUG 40POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10144518-041802LF |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Features | Pick and Place, Board Guide |
| Height Above Board | 4.7 mm |
| Height Above Board | 0.185 in |
| Mated Stacking Heights | 5 mm, 13 mm, 9 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.35 | |
| 10 | $ 1.03 | |||
| 25 | $ 0.92 | |||
| 50 | $ 0.85 | |||
| 100 | $ 0.79 | |||
| 250 | $ 0.71 | |||
| Digi-Reel® | 1 | $ 1.35 | ||
| 10 | $ 1.03 | |||
| 25 | $ 0.92 | |||
| 50 | $ 0.85 | |||
| 100 | $ 0.79 | |||
| 250 | $ 0.71 | |||
| Tape & Reel (TR) | 900 | $ 0.62 | ||
| 1800 | $ 0.58 | |||
| 2700 | $ 0.56 | |||
| 4500 | $ 0.53 | |||
| 6300 | $ 0.51 | |||
| 9000 | $ 0.49 | |||
Description
General part information
10144518 Series
40 Position Connector Plug, Center Strip Contacts Surface Mount Gold
