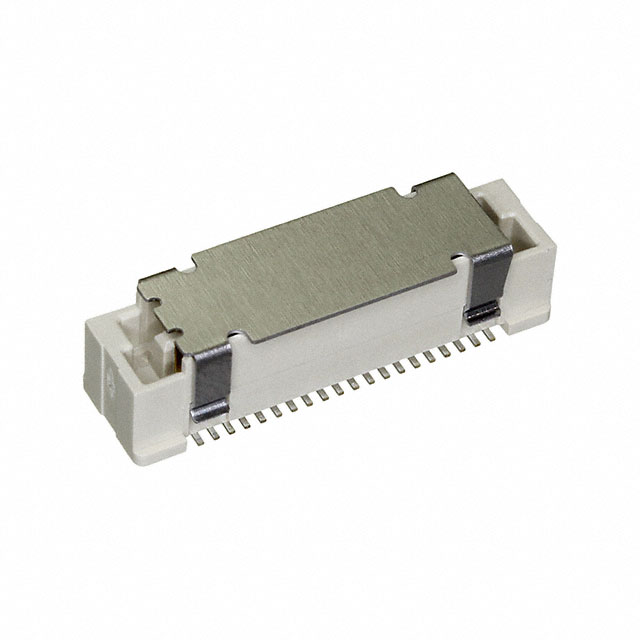

10144518-042802LF
ActiveAmphenol ICC (FCI)
CONN PLUG 40POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
10144518-042802LF
ActiveAmphenol ICC (FCI)
CONN PLUG 40POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10144518-042802LF |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Features | Pick and Place, Board Guide |
| Height Above Board | 0.224 in |
| Height Above Board | 5.7 mm |
| Mated Stacking Heights | 10 mm, 6 mm, 14 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.54 | |
| 10 | $ 1.18 | |||
| 25 | $ 1.06 | |||
| 50 | $ 0.98 | |||
| 100 | $ 0.91 | |||
| 250 | $ 0.82 | |||
| Digi-Reel® | 1 | $ 1.54 | ||
| 10 | $ 1.18 | |||
| 25 | $ 1.06 | |||
| 50 | $ 0.98 | |||
| 100 | $ 0.91 | |||
| 250 | $ 0.82 | |||
| Tape & Reel (TR) | 800 | $ 0.72 | ||
| 1600 | $ 0.67 | |||
| 2400 | $ 0.65 | |||
| 4000 | $ 0.61 | |||
| 5600 | $ 0.60 | |||
| 8000 | $ 0.58 | |||
Description
General part information
10144518 Series
40 Position Connector Plug, Center Strip Contacts Surface Mount Gold
