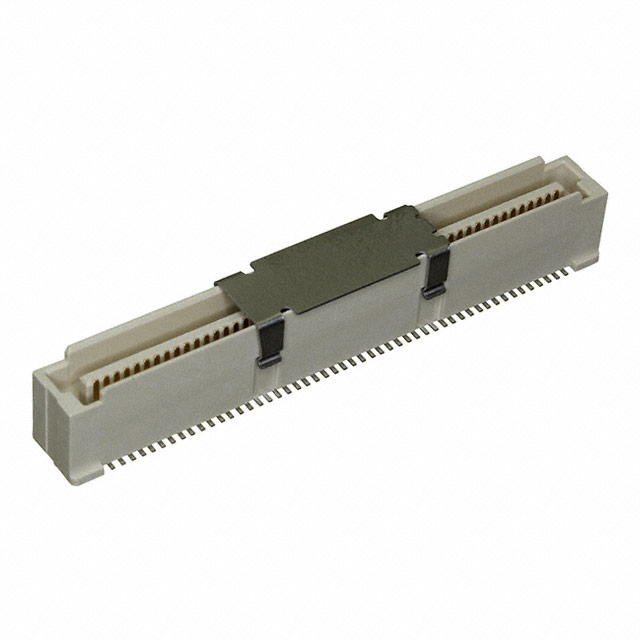

10144518-104802LF

Active

Amphenol ICC (FCI)

CONN PLUG 100POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

Documents10144517-042803LF bergstak lite 080 productpresentation Other Related Document +2

10144518-104802LF

Active

Amphenol ICC (FCI)

CONN PLUG 100POS SMD GOLD

Deep-Dive with AI

Documents10144517-042803LF bergstak lite 080 productpresentation Other Related Document +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10144518-104802LF

Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Features	Pick and Place, Board Guide
Height Above Board [z]	0.303 in
Height Above Board [z]	7.7 mm
Mated Stacking Heights	8 mm, 16 mm, 12 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

10144518 Series

Part	Number of Positions	Features	Height Above Board [z]	Height Above Board [z]	Contact Finish	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Mated Stacking Heights	Mounting Type	Height Above Board	Height Above Board
Amphenol ICC (FCI) 10144518-064802LF	60	Board Guide Pick and Place	0.303 in	7.7 mm	Gold	2	8 çin	0.203 çm	0.8 mm	0.031 in	8 mm 12 mm 16 mm	Surface Mount
Amphenol ICC (FCI) 10144518-042802LF	40	Board Guide Pick and Place			Gold	2	8 çin	0.203 çm	0.8 mm	0.031 in	6 mm 10 mm 14 mm	Surface Mount	0.224 in	5.7 mm
Amphenol ICC (FCI) 10144518-082802LF	80	Board Guide Pick and Place			Gold	2	8 çin	0.203 çm	0.8 mm	0.031 in	6 mm 10 mm 14 mm	Surface Mount	0.224 in	5.7 mm
Amphenol ICC (FCI) 10144518-121802LF	120	Board Guide Pick and Place			Gold	2	8 çin	0.203 çm	0.8 mm	0.031 in	5 mm 9 mm 13 mm	Surface Mount	0.185 in	4.7 mm
Amphenol ICC (FCI) 10144518-062802LF	60	Board Guide Pick and Place			Gold	2	8 çin	0.203 çm	0.8 mm	0.031 in	6 mm 10 mm 14 mm	Surface Mount	0.224 in	5.7 mm
Amphenol ICC (FCI) 10144518-102802LF	100	Board Guide Pick and Place			Gold	2	8 çin	0.203 çm	0.8 mm	0.031 in	6 mm 10 mm 14 mm	Surface Mount	0.224 in	5.7 mm
Amphenol ICC (FCI) 10144518-061802LF	60	Board Guide Pick and Place			Gold	2	8 çin	0.203 çm	0.8 mm	0.031 in	5 mm 9 mm 13 mm	Surface Mount	0.185 in	4.7 mm
Amphenol ICC (FCI) 10144518-041802LF	40	Board Guide Pick and Place			Gold	2	8 çin	0.203 çm	0.8 mm	0.031 in	5 mm 9 mm 13 mm	Surface Mount	0.185 in	4.7 mm
Amphenol ICC (FCI) 10144518-104802LF	100	Board Guide Pick and Place	0.303 in	7.7 mm	Gold	2	8 çin	0.203 çm	0.8 mm	0.031 in	8 mm 12 mm 16 mm	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.27
		10	$ 2.50
		25	$ 2.25
		50	$ 2.08
		100	$ 1.93
	Tape & Reel (TR)	400	$ 1.66
		800	$ 1.55
		1200	$ 1.49
		2000	$ 1.42
		2800	$ 1.37
		4000	$ 1.32

Description

General part information

10144518 Series

100 Position Connector Plug, Center Strip Contacts Surface Mount Gold

Documents

Technical documentation and resources

10144517-042803LF

bergstak lite 080 productpresentation Other Related Document

Datasheet

10144518 Datasheet/Drawing

Datasheet
