10144518-064802LF
ActiveAmphenol ICC (FCI)

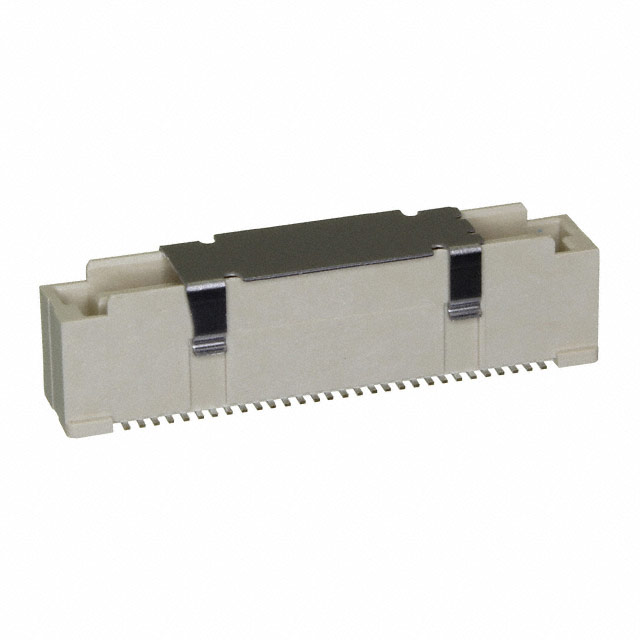

CONN PLUG 60POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
10144518-064802LF
ActiveAmphenol ICC (FCI)
CONN PLUG 60POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10144518-064802LF |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Features | Pick and Place, Board Guide |
| Height Above Board [z] | 0.303 in |
| Height Above Board [z] | 7.7 mm |
| Mated Stacking Heights | 8 mm, 16 mm, 12 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.22 | |
| 10 | $ 1.69 | |||
| 25 | $ 1.52 | |||
| 50 | $ 1.41 | |||
| 100 | $ 1.30 | |||
| 250 | $ 1.18 | |||
| Digi-Reel® | 1 | $ 2.22 | ||
| 10 | $ 1.69 | |||
| 25 | $ 1.52 | |||
| 50 | $ 1.41 | |||
| 100 | $ 1.30 | |||
| 250 | $ 1.18 | |||
| Tape & Reel (TR) | 600 | $ 1.08 | ||
| 1200 | $ 1.00 | |||
| 1800 | $ 0.96 | |||
| 3000 | $ 0.92 | |||
| 4200 | $ 0.89 | |||
| 6000 | $ 0.86 | |||
Description
General part information
10144518 Series
60 Position Connector Plug, Center Strip Contacts Surface Mount Gold
