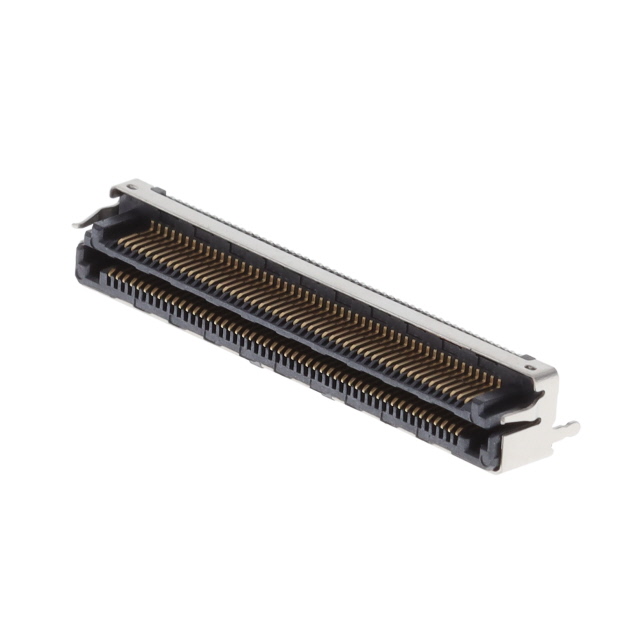

LSHM-150-03.0-F-DV-A-S-K-TR
ActiveSamtec Inc.
CONN SELF-MATE 100POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
LSHM-150-03.0-F-DV-A-S-K-TR
ActiveSamtec Inc.
CONN SELF-MATE 100POS SMD GOLD
Technical Specifications
Parameters and characteristics for this part
| Specification | LSHM-150-03.0-F-DV-A-S-K-TR |
|---|---|
| Connector Type | Self Mating, Non-Gendered, Hermaphroditic |
| Contact Finish | Gold |
| Contact Finish Thickness | 3 Áin |
| Contact Finish Thickness | 0.076 Ám |
| Features | Pick and Place, Board Guide, Shielded |
| Height Above Board | 0.175 in |
| Height Above Board | 4.45 mm |
| Mated Stacking Heights | 6 mm, 9 mm, 5.5 mm, 7 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.08 | |
| 25 | $ 7.69 | |||
| 50 | $ 7.24 | |||
| 100 | $ 6.83 | |||
| 250 | $ 5.56 | |||
| Digi-Reel® | 1 | $ 8.08 | ||
| 25 | $ 7.69 | |||
| 50 | $ 7.24 | |||
| 100 | $ 6.83 | |||
| 250 | $ 5.56 | |||
| Tape & Reel (TR) | 550 | $ 5.37 | ||
| 1100 | $ 5.21 | |||
Description
General part information
LSHM-150 Series
100 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
