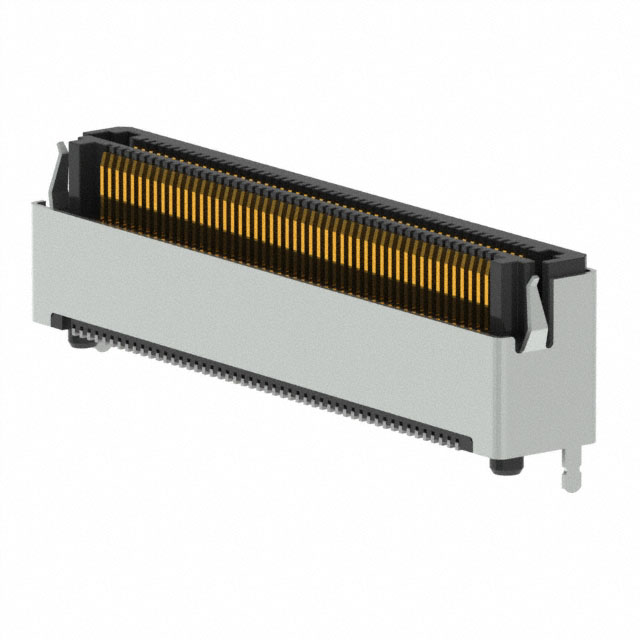

LSHM-150-06.0-L-DV-A-S-TR
ActiveSamtec Inc.
CONN SELF-MATE 100POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
LSHM-150-06.0-L-DV-A-S-TR
ActiveSamtec Inc.
CONN SELF-MATE 100POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LSHM-150-06.0-L-DV-A-S-TR |
|---|---|
| Connector Type | Self Mating, Non-Gendered, Hermaphroditic |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Shielded, Board Guide |
| Height Above Board [z] | 7.45 mm |
| Height Above Board [z] | 0.293 in |
| Mated Stacking Heights | 10 mm, 9 mm, 8.5 mm, 12 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.25 | |
| 10 | $ 8.85 | |||
| 25 | $ 8.56 | |||
| 50 | $ 7.88 | |||
| 100 | $ 7.02 | |||
| Digi-Reel® | 1 | $ 9.25 | ||
| 10 | $ 8.85 | |||
| 25 | $ 8.56 | |||
| 50 | $ 7.88 | |||
| 100 | $ 7.02 | |||
| Tape & Reel (TR) | 275 | $ 7.02 | ||
| 550 | $ 6.16 | |||
| 1375 | $ 5.88 | |||
Description
General part information
LSHM-150 Series
100 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
