LSHM-150-01-F-DH-A-S-TR

Active

Samtec Inc.

CONN SELF-MATE 100P R/A SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet LSHM Datasheet +3

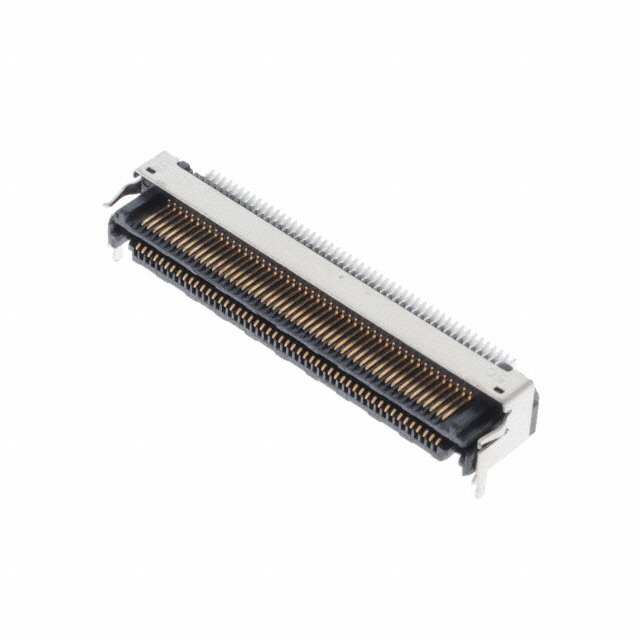

LSHM-150-01-F-DH-A-S-TR

Active

Samtec Inc.

CONN SELF-MATE 100P R/A SMD GOLD

Deep-Dive with AI

DocumentsDatasheet LSHM Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LSHM-150-01-F-DH-A-S-TR

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Features	Shielded, Board Guide
Height Above Board	0.202 in
Height Above Board	5.13 mm
Mounting Type	Surface Mount, Right Angle
Number of Positions	100
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

LSHM-150 Series

Part	Features	Connector Type	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Contact Finish	Height Above Board	Height Above Board	Height Above Board
Samtec Inc. LSHM-150-06.0-L-DV-A-S-K-TR	Board Guide Pick and Place Shielded	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	10 Áin	0.25 Ám	Surface Mount	100	8.5 mm 9 mm 10 mm 12 mm	7.45 mm	0.293 in	Gold
Samtec Inc. LSHM-150-L3.0-F-DV-A-N-K-TR	Board Guide Pick and Place	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	3 Áin	0.076 Ám	Surface Mount	100	5.5 mm 6 mm 7 mm 9 mm			Gold	0.175 in	4.45 mm
Samtec Inc. LSHM-150-06.0-L-DV-A-N-K-TR	Board Guide Pick and Place	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	10 Áin	0.25 Ám	Surface Mount	100	8.5 mm 9 mm 10 mm 12 mm	7.45 mm	0.293 in	Gold
Samtec Inc. LSHM-150-01-F-DH-A-S-TR	Board Guide Shielded	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	3 Áin	0.076 Ám	Surface Mount Right Angle	100				Gold	0.202 in	5.13 mm
Samtec Inc. LSHM-150-06.0-L-DV-A-S-TR	Board Guide Shielded	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	10 Áin	0.25 Ám	Surface Mount	100	8.5 mm 9 mm 10 mm 12 mm	7.45 mm	0.293 in	Gold
Samtec Inc. LSHM-150-04.0-L-DV-A-N-TR	Board Guide	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	10 Áin	0.25 Ám	Surface Mount	100	6.5 mm 7 mm 8 mm 10 mm			Gold		0.215 in	5.46 mm
Samtec Inc. LSHM-150-L4.0-F-DV-A-S-TR	Board Guide Shielded	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	3 Áin	0.076 Ám	Surface Mount	100	6.5 mm 7 mm 8 mm 10 mm			Gold		0.215 in	5.46 mm
Samtec Inc. LSHM-150-01-F-DH-A-N-K-TR	Board Guide Pick and Place	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	3 Áin	0.076 Ám	Surface Mount Right Angle	100				Gold	0.202 in	5.13 mm
Samtec Inc. LSHM-150-01-F-RH-A-S-K-TR	Board Guide Pick and Place Shielded	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	3 Áin	0.076 Ám		100				Gold	0.202 in	5.13 mm
Samtec Inc. LSHM-150-03.0-F-DV-A-S-K-TR	Board Guide Pick and Place Shielded	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	3 Áin	0.076 Ám	Surface Mount	100	5.5 mm 6 mm 7 mm 9 mm			Gold	0.175 in	4.45 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 11.28
		10	$ 10.80
		25	$ 10.44
		50	$ 9.61
		100	$ 8.55
	Digi-Reel®	1	$ 11.28
		10	$ 10.80
		25	$ 10.44
		50	$ 9.61
		100	$ 8.55
	Tape & Reel (TR)	375	$ 8.55
		750	$ 7.50
		1125	$ 7.16

Description

General part information

LSHM-150 Series

100 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount, Right Angle Gold

Documents

Technical documentation and resources

Datasheet

LSHM Datasheet

Datasheet

LSHM Series Other Related Documents 03

0.50 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip, Optional Shielding

LSHM Series Datasheet 03

Datasheet
