LSHM-150-06.0-L-DV-A-N-K-TR

Active

Samtec Inc.

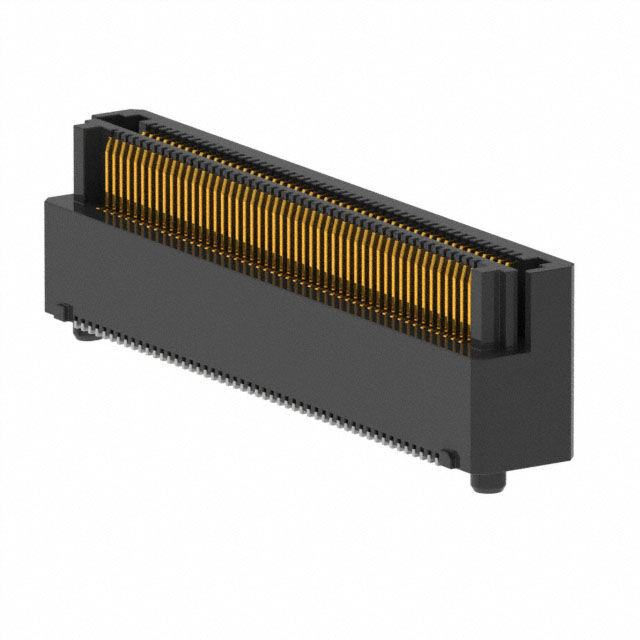

CONN SELF-MATE 100POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

Documents0.50 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip, Optional Shielding LSHM Series Other Related Documents 03 +3

LSHM-150-06.0-L-DV-A-N-K-TR

Active

Samtec Inc.

CONN SELF-MATE 100POS SMD GOLD

Deep-Dive with AI

Documents0.50 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip, Optional Shielding LSHM Series Other Related Documents 03 +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LSHM-150-06.0-L-DV-A-N-K-TR

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board [z]	7.45 mm
Height Above Board [z]	0.293 in
Mated Stacking Heights	10 mm, 9 mm, 8.5 mm, 12 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

LSHM-150 Series

Part	Features	Connector Type	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Contact Finish	Height Above Board	Height Above Board	Height Above Board
Samtec Inc. LSHM-150-06.0-L-DV-A-S-K-TR	Board Guide Pick and Place Shielded	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	10 Áin	0.25 Ám	Surface Mount	100	8.5 mm 9 mm 10 mm 12 mm	7.45 mm	0.293 in	Gold
Samtec Inc. LSHM-150-L3.0-F-DV-A-N-K-TR	Board Guide Pick and Place	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	3 Áin	0.076 Ám	Surface Mount	100	5.5 mm 6 mm 7 mm 9 mm			Gold	0.175 in	4.45 mm
Samtec Inc. LSHM-150-06.0-L-DV-A-N-K-TR	Board Guide Pick and Place	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	10 Áin	0.25 Ám	Surface Mount	100	8.5 mm 9 mm 10 mm 12 mm	7.45 mm	0.293 in	Gold
Samtec Inc. LSHM-150-01-F-DH-A-S-TR	Board Guide Shielded	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	3 Áin	0.076 Ám	Surface Mount Right Angle	100				Gold	0.202 in	5.13 mm
Samtec Inc. LSHM-150-06.0-L-DV-A-S-TR	Board Guide Shielded	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	10 Áin	0.25 Ám	Surface Mount	100	8.5 mm 9 mm 10 mm 12 mm	7.45 mm	0.293 in	Gold
Samtec Inc. LSHM-150-04.0-L-DV-A-N-TR	Board Guide	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	10 Áin	0.25 Ám	Surface Mount	100	6.5 mm 7 mm 8 mm 10 mm			Gold		0.215 in	5.46 mm
Samtec Inc. LSHM-150-L4.0-F-DV-A-S-TR	Board Guide Shielded	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	3 Áin	0.076 Ám	Surface Mount	100	6.5 mm 7 mm 8 mm 10 mm			Gold		0.215 in	5.46 mm
Samtec Inc. LSHM-150-01-F-DH-A-N-K-TR	Board Guide Pick and Place	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	3 Áin	0.076 Ám	Surface Mount Right Angle	100				Gold	0.202 in	5.13 mm
Samtec Inc. LSHM-150-01-F-RH-A-S-K-TR	Board Guide Pick and Place Shielded	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	3 Áin	0.076 Ám		100				Gold	0.202 in	5.13 mm
Samtec Inc. LSHM-150-03.0-F-DV-A-S-K-TR	Board Guide Pick and Place Shielded	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	3 Áin	0.076 Ám	Surface Mount	100	5.5 mm 6 mm 7 mm 9 mm			Gold	0.175 in	4.45 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 7.98
		25	$ 7.60
		50	$ 7.15
		100	$ 6.74
	Digi-Reel®	1	$ 7.98
		25	$ 7.60
		50	$ 7.15
		100	$ 6.74
	Tape & Reel (TR)	300	$ 5.46
		600	$ 5.29
		1500	$ 5.09

Description

General part information

LSHM-150 Series

100 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
