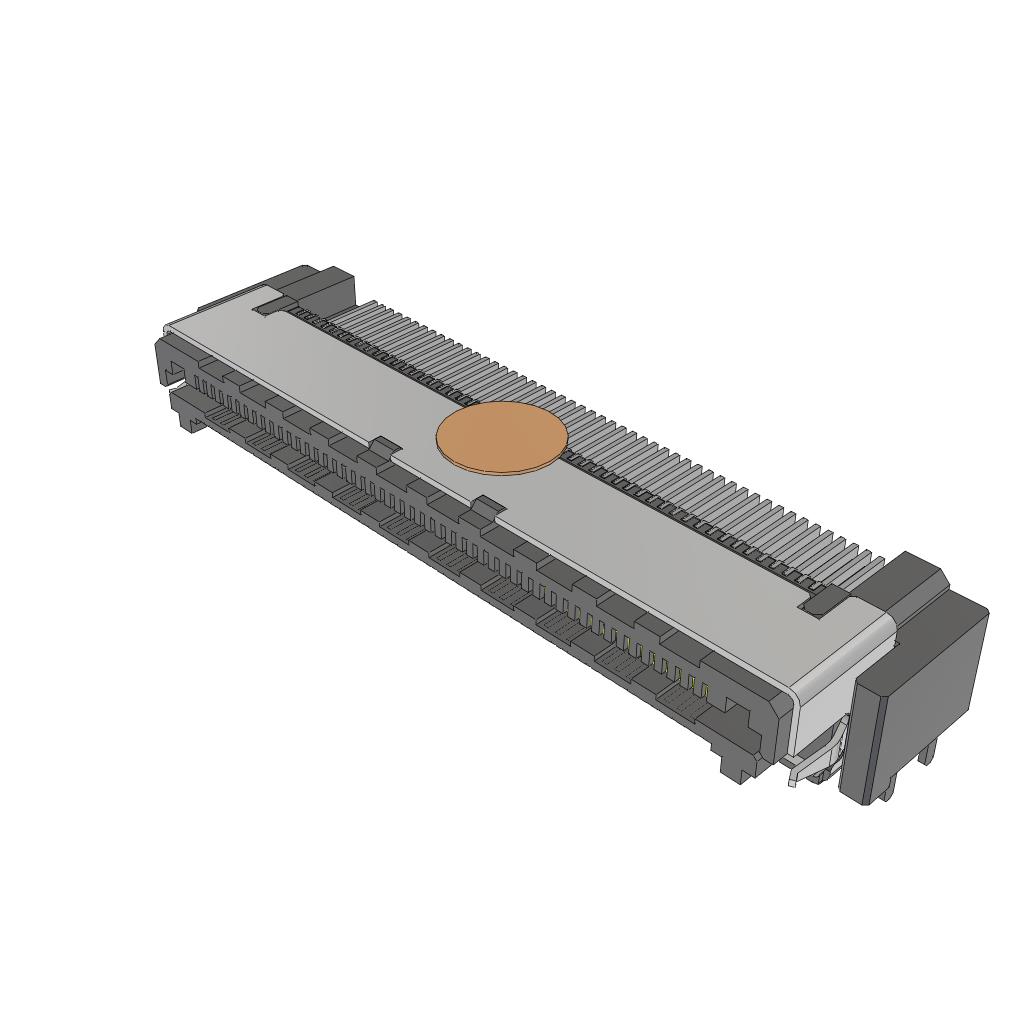

LSHM-150-01-F-RH-A-S-K-TR
ActiveSamtec Inc.
CONN SELF-MATE 100P R/A SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
LSHM-150-01-F-RH-A-S-K-TR
ActiveSamtec Inc.
CONN SELF-MATE 100P R/A SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LSHM-150-01-F-RH-A-S-K-TR |
|---|---|
| Connector Type | Self Mating, Non-Gendered, Hermaphroditic |
| Contact Finish | Gold |
| Contact Finish Thickness | 3 Áin |
| Contact Finish Thickness | 0.076 Ám |
| Features | Pick and Place, Board Guide, Shielded |
| Height Above Board | 0.202 in |
| Height Above Board | 5.13 mm |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 375 | $ 8.92 | |
Description
General part information
LSHM-150 Series
100 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount, Right Angle, Reverse Gold
