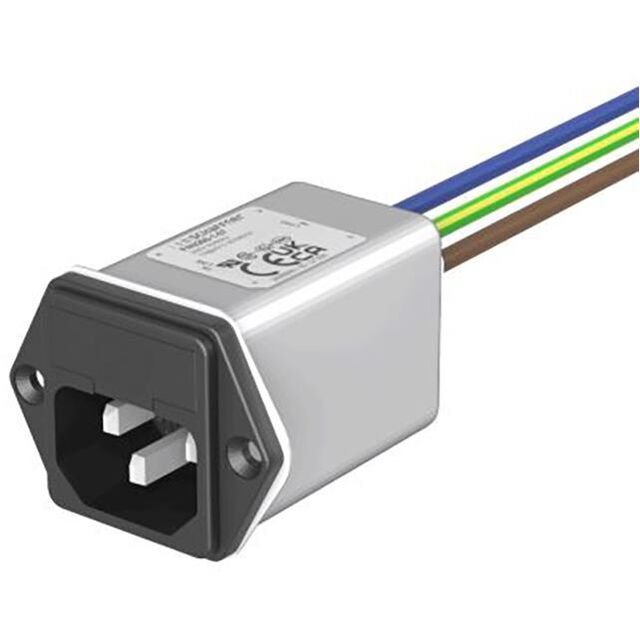

FN9260S-2-07-10
ActiveTE Connectivity Raychem Cable Protection
FN9260S-2-07-10
Deep-Dive with AI
Search across all available documentation for this part.
FN9260S-2-07-10
ActiveTE Connectivity Raychem Cable Protection
FN9260S-2-07-10
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FN9260S-2-07-10 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | UL, CQC, CSA, ENEC |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Filter | 2 A |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder, Twin Fused |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 29.5 mm |
| Panel Cutout Dimensions [y] | 33 mm |
| Panel Thickness [Max] | 1.5 mm |
| Panel Thickness [Max] | 0.059 in |
| Panel Thickness [Min] | 0.6 mm |
| Panel Thickness [Min] | 0.024 in |
| Termination | Wire Leads |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 22.99 | |
| 10 | $ 17.71 | |||
| 25 | $ 16.04 | |||
| 50 | $ 14.90 | |||
Description
General part information
Schaffner FN9260/FN261 Series
2 A, Unfiltered, 310 µA Leakage Current @ 250VAC, 50Hz, Litz Wire, 180 µA Leakage Current @ 120VAC, 60Hz, Schaffner FN9260/FN261, Inlet Filters
