FN261S-2-06-10

Active

TE Connectivity Raychem Cable Protection

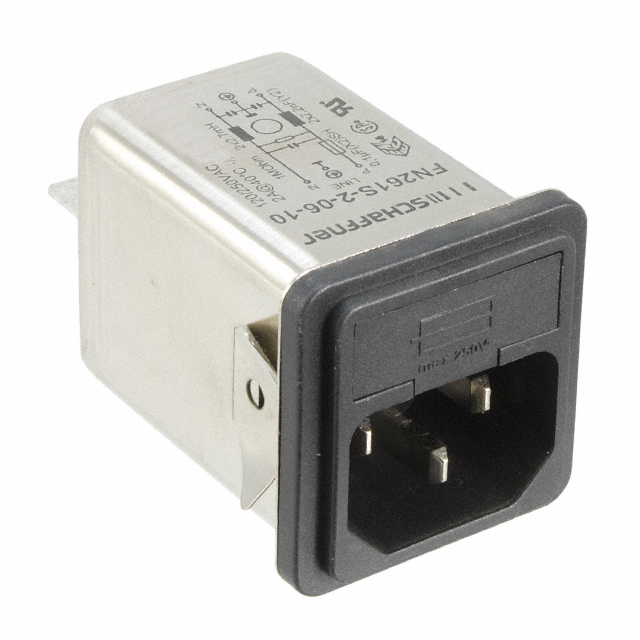

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN261S-2-06-10

Active

TE Connectivity Raychem Cable Protection

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN261S-2-06-10

Accomodates a Fuse	True
Approval Agency	UL, CQC, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Filter	2 A
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder
Ingress Protection	IP40
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	29.5 mm
Panel Cutout Dimensions [y]	33 mm
Panel Thickness [Max]	1.5 mm
Panel Thickness [Max]	0.059 in
Panel Thickness [Min]	0.6 mm
Panel Thickness [Min]	0.024 in
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect

Schaffner FN9260/FN261 Series

Part	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Termination	Termination	Termination	Ingress Protection	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Filter Type	Current Rating - Filter	Mounting Type	Connector Type	Connector Style	Material Flammability Rating	Fuse Holder, Drawer	Approval Agency
TE Connectivity Raychem Cable Protection FN261S-4-06-10	1.5 mm	0.6 mm	0.024 in	0.059 in	0.25 in	6.3 mm	Quick Connect	IP40	33 mm	29.5 mm	Filtered (EMI RFI) - Commercial	4 A	Panel Mount Snap-In	Receptacle Male Blades - Module	IEC 320-C14	UL94 V-2	Fuse Holder	CQC CSA ENEC UL
TE Connectivity Raychem Cable Protection FN9260S-2-07-10	1.5 mm	0.6 mm	0.024 in	0.059 in			Wire Leads	IP40	33 mm	29.5 mm	Filtered (EMI RFI) - Commercial	2 A	Panel Mount Snap-In	Receptacle Male Blades - Module	IEC 320-C14	UL94 V-0	Fuse Holder Twin Fused	CQC CSA ENEC UL
TE Connectivity Raychem Cable Protection FN261-2-06					0.25 in	6.3 mm	Quick Connect	IP40	33 mm	29 mm	Filtered (EMI RFI) - Commercial	10 A	Flange Panel Mount	Receptacle Male Blades - Module	IEC 320-C14	UL94 V-2	Fuse Holder	CQC CSA ENEC UL
TE Connectivity Raychem Cable Protection FN261S-2-06-10	1.5 mm	0.6 mm	0.024 in	0.059 in	0.25 in	6.3 mm	Quick Connect	IP40	33 mm	29.5 mm	Filtered (EMI RFI) - Commercial	2 A	Panel Mount Snap-In	Receptacle Male Blades - Module	IEC 320-C14	UL94 V-2	Fuse Holder	CQC CSA ENEC UL
TE Connectivity Raychem Cable Protection FN261-10-06					0.25 in	6.3 mm	Quick Connect	IP40	33 mm	29 mm	Filtered (EMI RFI) - Commercial	10 A	Flange Panel Mount	Receptacle Male Blades - Module	IEC 320-C14	UL94 V-2	Fuse Holder	CQC CSA ENEC UL
TE Connectivity Raychem Cable Protection FN9260-1-06					0.25 in	6.3 mm	Quick Connect	IP40	33 mm	29 mm	Filtered (EMI RFI) - Commercial	1 A	Flange Panel Mount	Receptacle Male Blades - Module	IEC 320-C14	UL94 V-2	Fuse Holder Twin Fused	CQC CSA ENEC UL
TE Connectivity Raychem Cable Protection FN261S-1-06-10	1.5 mm	0.6 mm	0.024 in	0.059 in	0.25 in	6.3 mm	Quick Connect	IP40	33 mm	29.5 mm	Filtered (EMI RFI) - Commercial	1 A	Panel Mount Snap-In	Receptacle Male Blades - Module	IEC 320-C14	UL94 V-2	Fuse Holder	CQC CSA ENEC UL
TE Connectivity Raychem Cable Protection FN261S-4-06-20	2.5 mm	1.6 mm	0.063 in	0.098 in	0.25 in	6.3 mm	Quick Connect	IP40	33 mm	29.5 mm	Filtered (EMI RFI) - Commercial	4 A	Panel Mount Snap-In	Receptacle Male Blades - Module	IEC 320-C14	UL94 V-2	Fuse Holder	CQC CSA ENEC UL
TE Connectivity Raychem Cable Protection FN9260SB-2-06-10	1.5 mm	0.6 mm	0.024 in	0.059 in	0.25 in	6.3 mm	Quick Connect	IP40	33 mm	29.5 mm	Filtered (EMI RFI) - Commercial Medical	2 A	Panel Mount Snap-In	Receptacle Male Blades - Module	IEC 320-C14	UL94 V-2	Fuse Holder Twin Fused	CQC CSA ENEC UL
TE Connectivity Raychem Cable Protection FN261S-6-06-10	1.5 mm	0.6 mm	0.024 in	0.059 in	0.25 in	6.3 mm	Quick Connect	IP40	33 mm	29.5 mm	Filtered (EMI RFI) - Commercial	6 A	Panel Mount Snap-In	Receptacle Male Blades - Module	IEC 320-C14	UL94 V-2	Fuse Holder	CQC CSA ENEC UL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 13.15
		10	$ 11.40
		25	$ 11.02

Description

General part information

Schaffner FN9260/FN261 Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
