FN9260-1-06

Active

TE Connectivity Raychem Cable Protection

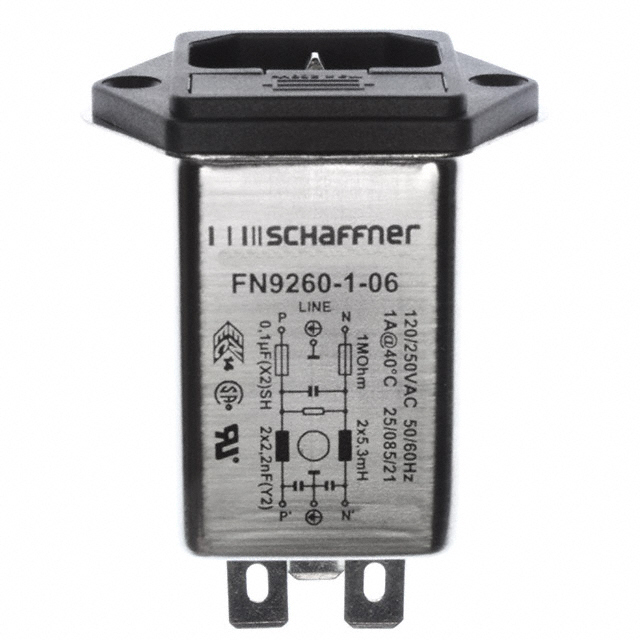

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet UKCA_PEM-FNxxxx

FN9260-1-06

Active

TE Connectivity Raychem Cable Protection

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsDatasheet UKCA_PEM-FNxxxx

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN9260-1-06

Accomodates a Fuse	True
Approval Agency	UL, CQC, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Filter	1 A
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Ingress Protection	IP40
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	29 mm
Panel Cutout Dimensions [y]	33 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect

FN9260 Series

Part	Filter Type	Fuse Holder, Drawer	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Connector Style	Current Rating - Filter	Connector Type	Termination	Termination	Termination	Approval Agency	Mounting Type	Ingress Protection	Material Flammability Rating	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]
TE Connectivity Raychem Cable Protection FN9260-10-06	Filtered (EMI RFI) - Commercial	Fuse Holder Twin Fused	33 mm	29 mm	IEC 320-C14	10 A	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect	CQC CSA ENEC UL	Flange Panel Mount	IP40	UL94 V-2
TE Connectivity Raychem Cable Protection FN9260-1-06	Filtered (EMI RFI) - Commercial	Fuse Holder Twin Fused	33 mm	29 mm	IEC 320-C14	1 A	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect	CQC CSA ENEC UL	Flange Panel Mount	IP40	UL94 V-2
TE Connectivity Raychem Cable Protection FN9260SB-6-06-20	Filtered (EMI RFI) - Commercial Medical	Fuse Holder Twin Fused	33 mm	29.5 mm	IEC 320-C14	6 A	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect	CQC CSA ENEC UL	Panel Mount Snap-In	IP40	UL94 V-2	0.063 in	1.6 mm	0.098 in	2.5 mm
TE Connectivity Raychem Cable Protection FN9260-2-06	Filtered (EMI RFI) - Commercial	Fuse Holder Twin Fused	33 mm	29 mm	IEC 320-C14	2 A	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect	CQC CSA ENEC UL	Flange Panel Mount	IP40	UL94 V-2
TE Connectivity Raychem Cable Protection FN9260SB-2-06-10	Filtered (EMI RFI) - Commercial Medical	Fuse Holder Twin Fused	33 mm	29.5 mm	IEC 320-C14	2 A	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect	CQC CSA ENEC UL	Panel Mount Snap-In	IP40	UL94 V-2	0.024 in	0.6 mm	0.059 in	1.5 mm
TE Connectivity Raychem Cable Protection FN9260S-2-06-10	Filtered (EMI RFI) - Commercial	Fuse Holder Twin Fused	33 mm	29.5 mm	IEC 320-C14	2 A	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect	CQC CSA ENEC UL	Panel Mount Snap-In	IP40	UL94 V-2	0.024 in	0.6 mm	0.059 in	1.5 mm
TE Connectivity Raychem Cable Protection FN9260SB-1-06-30	Filtered (EMI RFI) - Commercial Medical	Fuse Holder Twin Fused	33 mm	29.5 mm	IEC 320-C14	1 A	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect	CQC CSA ENEC UL	Panel Mount Snap-In	IP40	UL94 V-2	0.102 in	2.6 mm	0.138 in	3.5 mm
TE Connectivity Raychem Cable Protection FN9260S-6-06-10	Filtered (EMI RFI) - Commercial	Fuse Holder Twin Fused	33 mm	29.5 mm	IEC 320-C14	6 A	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect	CQC CSA ENEC UL	Panel Mount Snap-In	IP40	UL94 V-2	0.024 in	0.6 mm	0.059 in	1.5 mm
TE Connectivity Raychem Cable Protection FN9260S-4-06-10	Filtered (EMI RFI) - Commercial	Fuse Holder Twin Fused	33 mm	29.5 mm	IEC 320-C14	4 A	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect	CQC CSA ENEC UL	Panel Mount Snap-In	IP40	UL94 V-2	0.024 in	0.6 mm	0.059 in	1.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.80
		10	$ 15.42
		25	$ 14.62
		60	$ 14.41
		120	$ 12.71
		300	$ 11.86
		540	$ 11.61

Description

General part information

FN9260 Series

1 A, Unfiltered, 310 µA Leakage Current @ 250VAC, 50Hz, FASTON, 180 µA Leakage Current @ 120VAC, 60Hz, Schaffner FN9260/FN261, Inlet Filters
