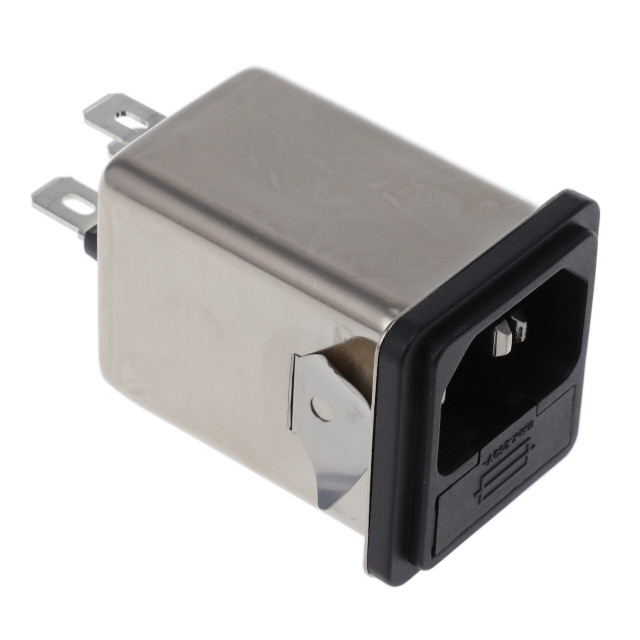

FN9260SB-1-06-30
ActiveTE Connectivity Raychem Cable Protection
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FN9260SB-1-06-30
ActiveTE Connectivity Raychem Cable Protection
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FN9260SB-1-06-30 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | UL, CQC, CSA, ENEC |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Filter | 1 A |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Fuse Holder, Drawer | Fuse Holder, Twin Fused |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 29.5 mm |
| Panel Cutout Dimensions [y] | 33 mm |
| Panel Thickness [Max] | 3.5 mm |
| Panel Thickness [Max] | 0.138 in |
| Panel Thickness [Min] | 2.6 mm |
| Panel Thickness [Min] | 0.102 in |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.23 | |
| 10 | $ 9.96 | |||
| 25 | $ 9.57 | |||
| 60 | $ 9.19 | |||
| 120 | $ 8.99 | |||
Description
General part information
FN9260 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
