2318770-6
ActiveTE Connectivity Raychem Cable Protection

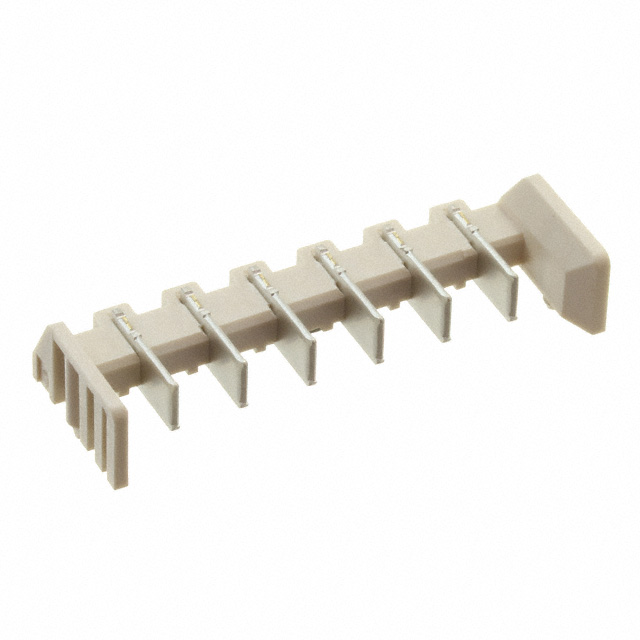

TWO-PIECE POKE-IN, 5MM HEADER, 6 POS
Deep-Dive with AI
Search across all available documentation for this part.
2318770-6
ActiveTE Connectivity Raychem Cable Protection
TWO-PIECE POKE-IN, 5MM HEADER, 6 POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2318770-6 |
|---|---|
| Color | Natural |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Features | Board Guide |
| Header Orientation | 90°, Right Angle |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height [z] | 6.4 mm |
| Insulation Height [z] | 0.252 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Levels | 1 |
| Number of Positions | 6 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 6 |
| Termination Style | Solder |
| Type | Header, Blade Pins |
| Voltage - UL | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.78 | |
| 10 | $ 1.25 | |||
| 25 | $ 1.17 | |||
| 50 | $ 1.06 | |||
| 100 | $ 1.06 | |||
| Digi-Reel® | 1 | $ 1.78 | ||
| 10 | $ 1.25 | |||
| 25 | $ 1.17 | |||
| 50 | $ 1.06 | |||
| 100 | $ 1.06 | |||
| Tape & Reel (TR) | 350 | $ 0.55 | ||
| 700 | $ 0.53 | |||
Description
General part information
BUCHANAN WireMate Two-Piece Poke-In Series Series
Pluggable Terminal Blocks 8MM HDR ASSY, 4 POS WIREMATE 2-PIECE
