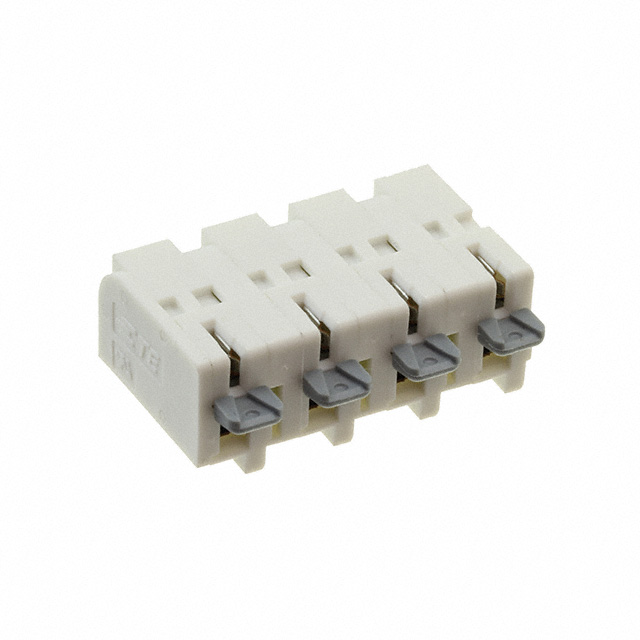

2318582-4 - 2318582-4

2318582-4

Active
TE Connectivity Raychem Cable Protection

FIXED TERMINAL BLOCKS 8MM CONN ASSY, 4 POS WIREMATE 2-PIECE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetWIREMATE TERMINAL BLOCKS+5
2318582-4 - 2318582-4

2318582-4

Active
TE Connectivity Raychem Cable Protection

FIXED TERMINAL BLOCKS 8MM CONN ASSY, 4 POS WIREMATE 2-PIECE

Deep-Dive with AI

DocumentsDatasheetWIREMATE TERMINAL BLOCKS+5

Technical Specifications

Parameters and characteristics for this part

Specification2318582-4
ColorNatural
Contact MaterialCopper Alloy
Contact Mating FinishTin
FeaturesLever Actuated
Housing MaterialPolybutylene Terephthalate (PBT), Glass Filled
Insulation Height [z]17 mm
Insulation Height [z]0.669 "
Material Flammability RatingUL94 V-0
Mounting TypePanel Mount, Snap-In
Number of Levels1
Number of Positions4
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Positions Per Level4
Termination StyleScrewless
TypeBlade Sockets, Plug
Voltage - UL250 V
Wire Gauge or Range - AWG [Max]24 AWG
Wire Gauge or Range - AWG [Min]18 AWG
Wire Gauge or Range - mm² [Max]0.82 mm²
Wire Gauge or Range - mm² [Min]0.2 mm²
Wire Strip Length10 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 1.62
10$ 1.45
25$ 1.44
100$ 1.31
300$ 1.30
500$ 1.29
LCSCPiece 1$ 1.87
200$ 0.75
500$ 0.72
1000$ 0.71
SagerN/A 100$ 2.00

Description

General part information

BUCHANAN WireMate Two-Piece Poke-In Series Series

Pluggable Terminal Blocks 8MM HDR ASSY, 4 POS WIREMATE 2-PIECE
