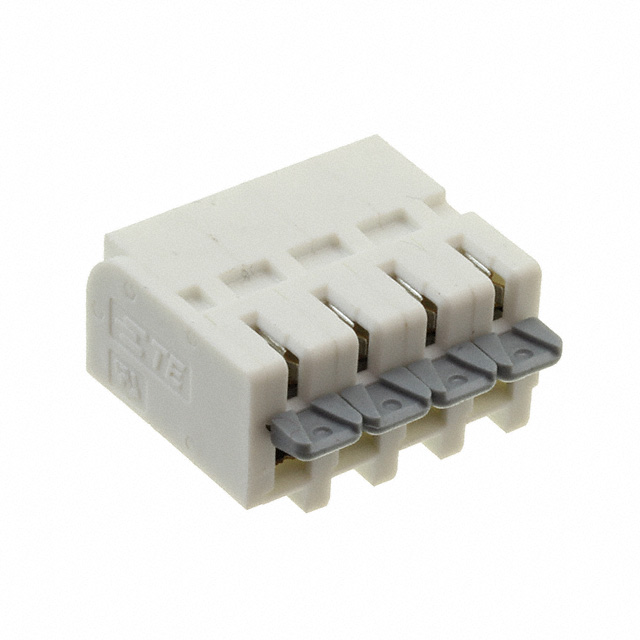

2319461-4
ActiveTE Connectivity Raychem Cable Protection
TWO-PIECE POKE-IN, 5MM CONN, 4 POS
Deep-Dive with AI
Search across all available documentation for this part.
2319461-4
ActiveTE Connectivity Raychem Cable Protection
TWO-PIECE POKE-IN, 5MM CONN, 4 POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2319461-4 |
|---|---|
| Color | Natural |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Features | Lever Actuated |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height [z] | 17 mm |
| Insulation Height [z] | 0.669 " |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 4 |
| Termination Style | Screwless |
| Type | Blade Sockets, Plug |
| Voltage - UL | 250 V |
| Wire Gauge or Range - AWG [Max] | 24 AWG |
| Wire Gauge or Range - AWG [Min] | 18 AWG |
| Wire Gauge or Range - mm² [Max] | 0.82 mm² |
| Wire Gauge or Range - mm² [Min] | 0.2 mm² |
| Wire Strip Length | 10 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.45 | |
| 10 | $ 1.29 | |||
| 25 | $ 1.29 | |||
| 50 | $ 2.44 | |||
| 150 | $ 1.17 | |||
| 300 | $ 1.16 | |||
| 600 | $ 1.89 | |||
| 1050 | $ 1.15 | |||
| 5100 | $ 1.68 | |||
Description
General part information
BUCHANAN WireMate Two-Piece Poke-In Series Series
Pluggable Terminal Blocks 8MM HDR ASSY, 4 POS WIREMATE 2-PIECE
